Wireless Charging System Module Replacement

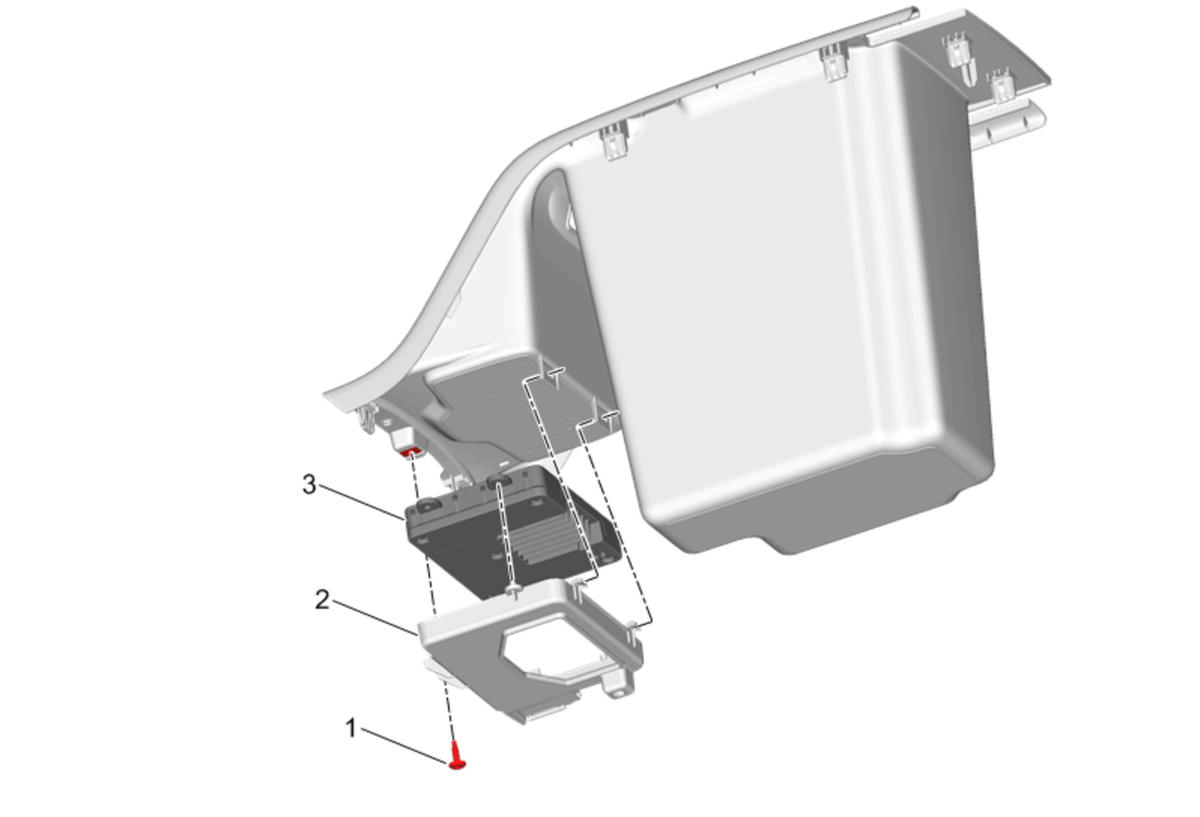

Fig 1: Wireless Charging System Module

Courtesy of GENERAL MOTORS COMPANY

Callout	Component Name
Preliminary Procedure Front Floor Console Compartment Replacement (Automatic Transmission)Front Floor Console Compartment Replacement (Manual Transmission)
1	Front Floor Console Bolt CAUTION: Fastener Caution Tighten 2.5 N.m (22 lb in)
2	Front Floor Console Housing
3	Wireless Charging System Module
