Battery Tray Replacement

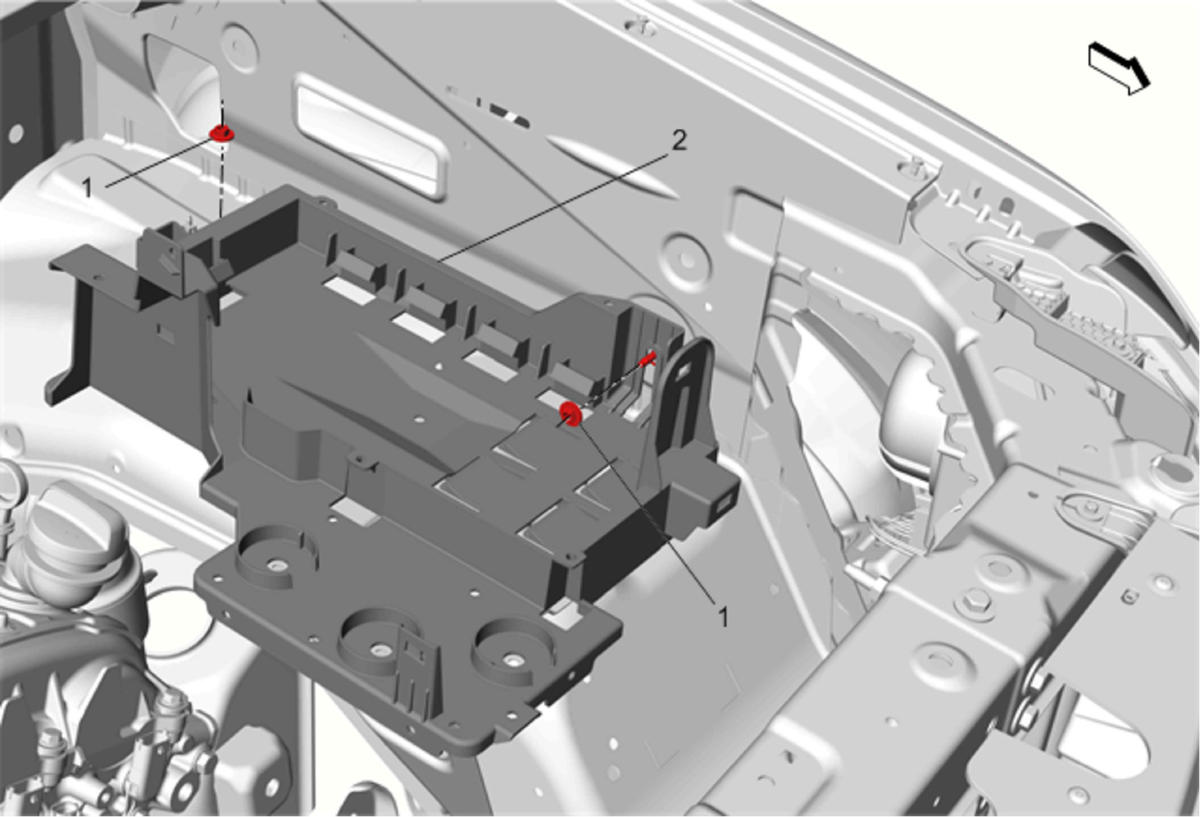

Fig 1: Battery Tray

Courtesy of GENERAL MOTORS COMPANY

Callout	Component Name
Preliminary Procedures Battery Replacement Engine Wiring Harness Fuse Block Bracket Replacement
1	Battery Tray Fastener (Qty: 2) CAUTION: Refer to Fastener Caution . Tighten 9 N.m (80 lb in)
2	Battery Tray Procedure Disconnect and unclip all necessary electrical components from the battery tray.

Callout

Component Name

Preliminary Procedures

Battery Tray Fastener (Qty: 2)

CAUTION:

Tighten
9 N.m (80 lb in)

Battery Tray
Procedure
Disconnect and unclip all necessary electrical components from the battery tray.
