Front View Driver Information Camera Replacement (UVJ Less Z51)

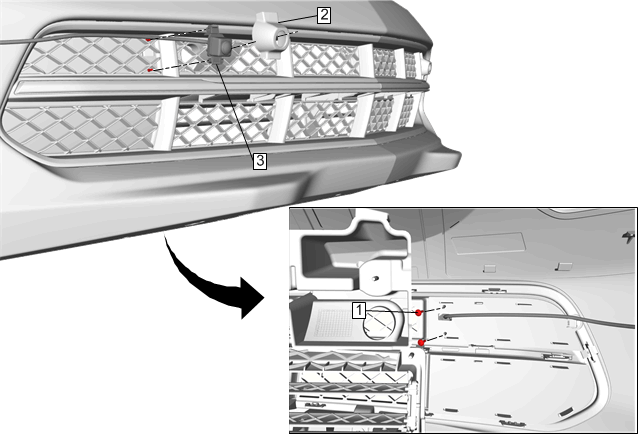

Fig 1: Front View Driver Information Camera (UVJ Less Z51)

Courtesy of GENERAL MOTORS COMPANY

Callout	Component Name
Preliminary Procedures Front Bumper Fascia Energy Absorber Replacement Place the bumper fascia face down on a clean protected surface.
1	Front View Driver Information Camera Screw (Qty: 2) CAUTION: Refer to Fastener Caution . Tighten 1 N.m (9 lb in)
2	Front Grille Opening Bezel Procedure Pull the front grille opening bezel from the front view driver information camera.
3	Front View Driver Information Camera
