Rear of Instrument Panel Components

Items
1: T4P Navigation Antenna (UI3)
2: T15 Navigation Antenna Signal Splitter (IO6) T15 Navigation Antenna Signal Splitter X1 (IO6+UE1-EXP)T15 Navigation Antenna Signal Splitter X1 (IO6+UE1+EXP)T15 Navigation Antenna Signal Splitter X1 (IO6+UE1-EXP-CZ2)T15 Navigation Antenna Signal Splitter X2 (IO6+UE1+CZ2-EXP)T15 Navigation Antenna Signal Splitter X2 (IO6+UE1+EXP)T15 Navigation Antenna Signal Splitter X2 (IO6+UE1-EXP)T15 Navigation Antenna Signal Splitter X3 (IO6+UE1)
3: T4F Cellular Phone Antenna (UE1 Without EXP) T4F Cellular Phone Antenna (UE1+CZ2)T4F Cellular Phone Antenna (UE1-EXP)
4: K56 Serial Data Gateway Module K56 Serial Data Gateway Module X1 K56 Serial Data Gateway Module X2
5: T10J Keyless Entry Antenna - Center Console Front T10J Keyless Entry Antenna - Center Console Front
6: K73 Telematics Communication Interface Control Module K73 Telematics Communication Interface Control Module X1 (UE1/UI3)K73 Telematics Communication Interface Control Module X2 (UE1/UI3)K73 Telematics Communication Interface Control Module X5 (UE1+CZ2-EXP)K73 Telematics Communication Interface Control Module X5 (UE1-CZ2)K73 Telematics Communication Interface Control Module X5 (UE1-EXP)K73 Telematics Communication Interface Control Module X5 (UI3)K73 Telematics Communication Interface Control Module X7 (IO6+UE1+EXP-CZ2)K73 Telematics Communication Interface Control Module X7 (IO6+UE1-CZ2-EXP)K73 Telematics Communication Interface Control Module X7 (IO6+UE1-EXP)K73 Telematics Communication Interface Control Module X7 (IO6+UE1-EXP-CZ2)K73 Telematics Communication Interface Control Module X7 (UE1/UE3+CZ2)

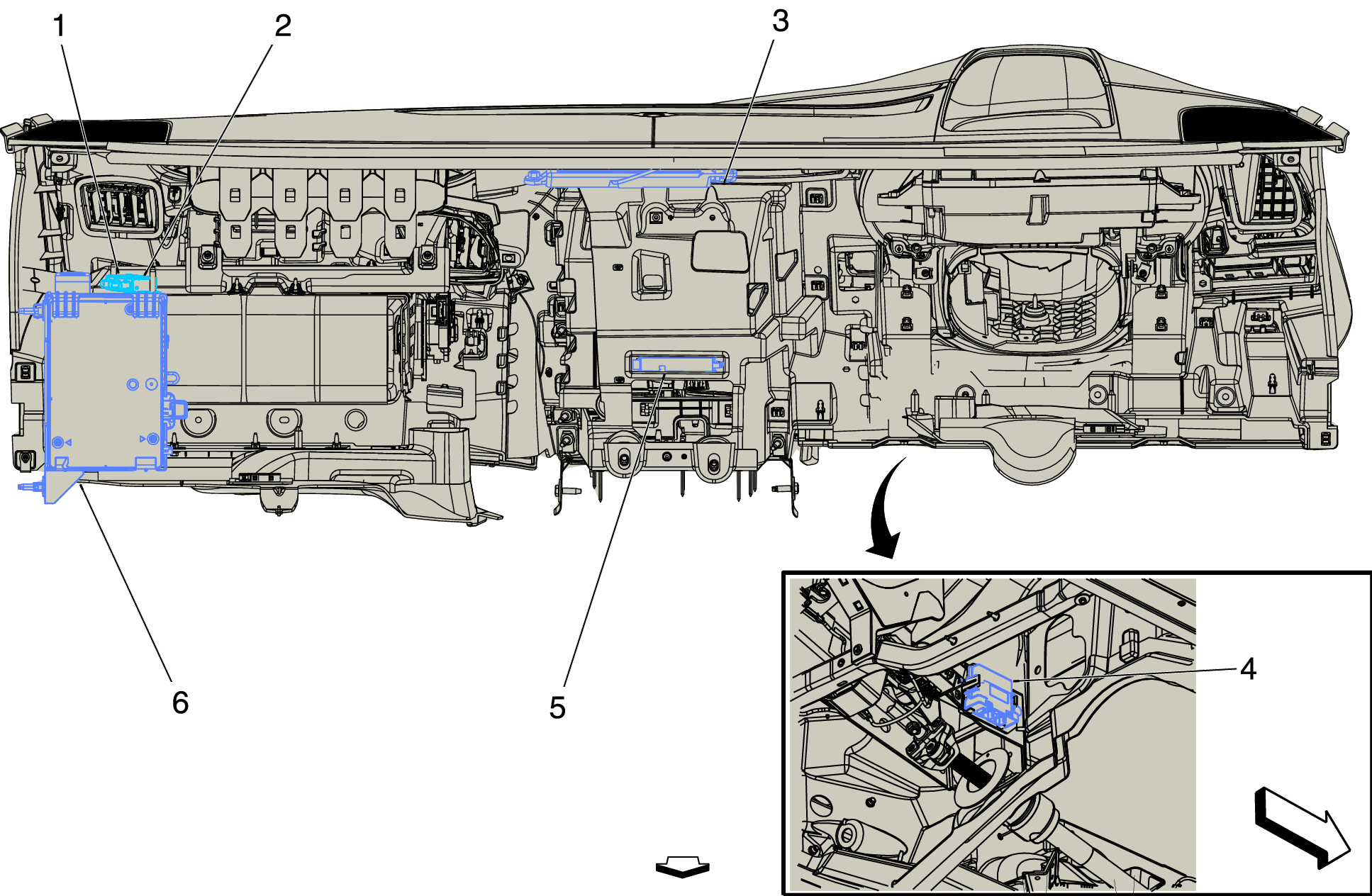

Fig 1: Rear of Instrument Panel Components

Courtesy of GENERAL MOTORS COMPANY
