Front View Driver Information Camera Replacement (UVJ & Z51)

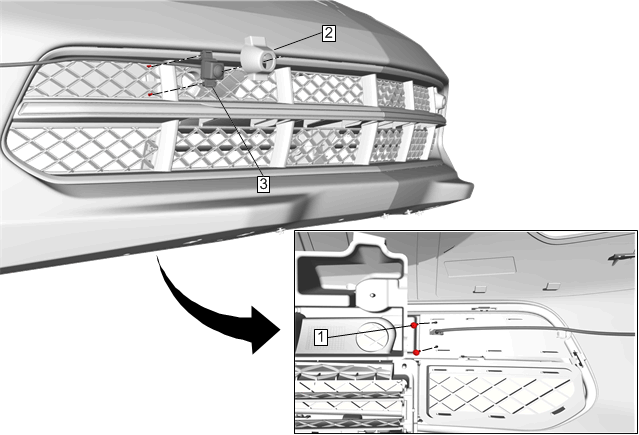

Fig 1: Front View Driver Information Camera (UVJ & Z51)

Courtesy of GENERAL MOTORS COMPANY

Callout	Component Name
Preliminary Procedures Front Bumper Fascia Energy Absorber Replacement Place the bumper fascia face down on a clean protected surface.
1	Front View Driver Information Camera Screw (Qty: 2) CAUTION: Refer to Fastener Caution . Tighten 1 N.m (9 lb in)
2	Front Grille Opening Bezel Procedure Pull the front grille opening bezel from the front view driver information camera.
3	Front View Driver Information Camera
