Front View Camera Replacement

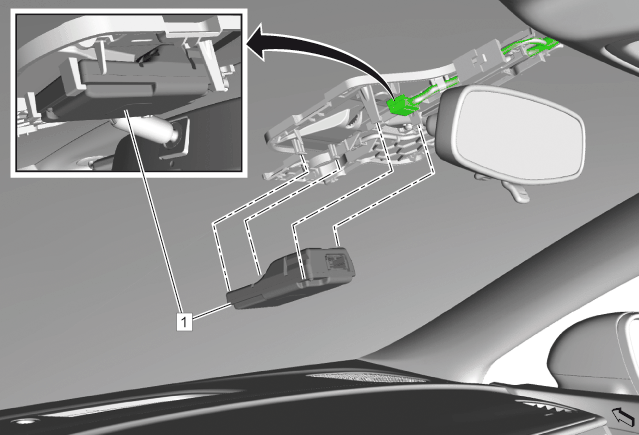

Fig 1: Front View Camera

Courtesy of GENERAL MOTORS COMPANY

Callout	Component Name
Preliminary Procedure Remove Windshield Multifunction Sensor Mount Bracket Cover. Refer to Windshield Multifunction Sensor Mount Bracket Cover Replacement
1	Front View Camera Procedure Disconnect the electrical connector. Release the front view camera out of the windscreen bracket. Perform the scan tool learn/reset function: Control Module References

Callout

Component Name

Preliminary Procedure
Remove Windshield Multifunction Sensor Mount Bracket Cover. Refer to Windshield Multifunction Sensor Mount Bracket Cover Replacement

Front View Camera

Procedure
