Parking Assist Control Module Replacement (Hatchback)

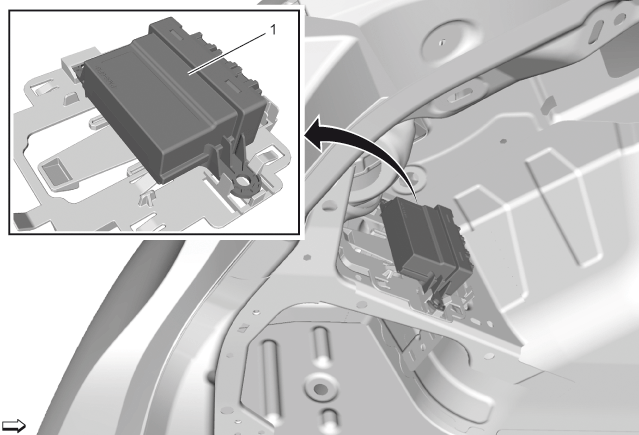

Fig 1: Parking Assist Control Module (Hatchback)

Courtesy of GENERAL MOTORS COMPANY

Callout	Component Name
Preliminary Procedures Disconnect Battery Negative Cable. Refer to Battery Negative Cable Disconnection and Connection Open the rear compartment side trim panel service flap.
1	Parking Assist Control Module Procedure Disconnect the electrical connectors. Perform the scan tool learn/reset function: Control Module References

Callout

Component Name

Preliminary Procedures

Disconnect Battery Negative Cable. Refer to Battery Negative Cable Disconnection and Connection
Open the rear compartment side trim panel service flap.

Parking Assist Control Module

Procedure
