Multimedia Receptacle Replacement

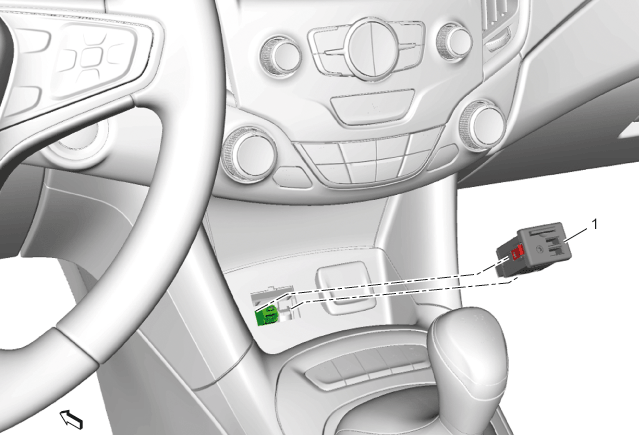

Fig 1: Multimedia Receptacle

Courtesy of GENERAL MOTORS COMPANY

Callout	Component Name
Procedure Remove Instrument Panel Tie Bar Brace - Left Side. Refer to Instrument Panel Tie Bar Brace Replacement - Left Side
1	Multimedia Receptacle Procedure Unlock the retaining tabs. Disconnect the electrical connector.

Callout

Component Name

Procedure
Remove Instrument Panel Tie Bar Brace - Left Side. Refer to Instrument Panel Tie Bar Brace Replacement - Left Side

Multimedia Receptacle

Procedure
