Navigation Signal Splitter Replacement

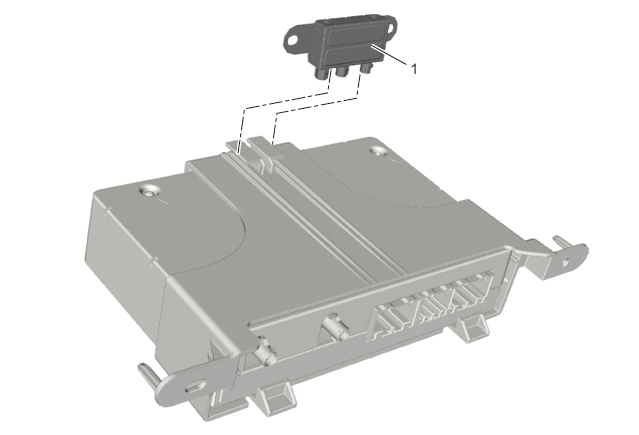

Fig 1: Navigation Signal Splitter
GM4284216Courtesy of GENERAL MOTORS COMPANY
Callout Component Name

Preliminary Procedures

  1. Disconnect Battery Negative Cable. Refer to Battery Negative Cable Disconnection and Connection
  2. Remove Communication Interface Module Bracket. Refer to Communication Interface Module Bracket Replacement
1 Navigation Signal Splitter
Procedure
Unlock the retaining tabs.
