Window Systems Component Views (Notchback)

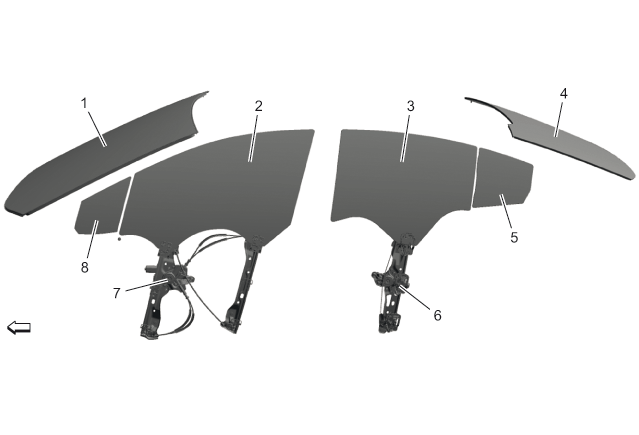

Fig 1: Window System Components
GM4276390Courtesy of GENERAL MOTORS COMPANY
Number Description Procedure
1 Windshield Windshield Replacement
2 Front Side Door Window Front Side Door Window Replacement
3 Rear Side Door Window Rear Side Door Window Replacement
4 Rear Window Rear Window Replacement
5 Rear Side Door Window Weatherstrip Rear Side Door Window Weatherstrip Replacement
6 Rear Side Door Window Regulator Rear Side Door Window Regulator Replacement
7 Front Side Door Window Regulator Front Side Door Window Regulator Replacement
8 Front Side Door Stationary Window Front Side Door Window Weatherstrip Replacement
