Accessory AC and DC Power Control Module Bracket Replacement

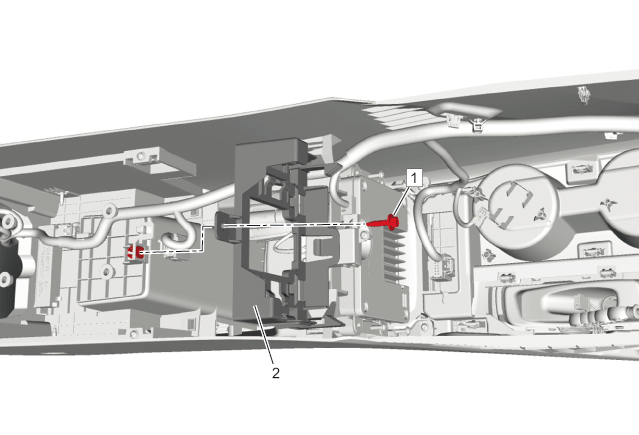

Fig 1: Accessory AC and DC Power Control Module Bracket

Courtesy of GENERAL MOTORS COMPANY

Callout	Component Name
Preliminary Procedure  Remove Accessory AC and DC Power Control Module. Refer to Accessory AC and DC Power Control Module Replacement
1	Accessory AC and DC Power Control Module Bracket Bolt CAUTION: Refer to Fastener Caution Tighten  2.5 N.m (22 lb in)
2	Accessory AC and DC Power Control Module Bracket Procedure  Unlock the retaining tabs.
