Accessory AC and DC Power Control Module Replacement

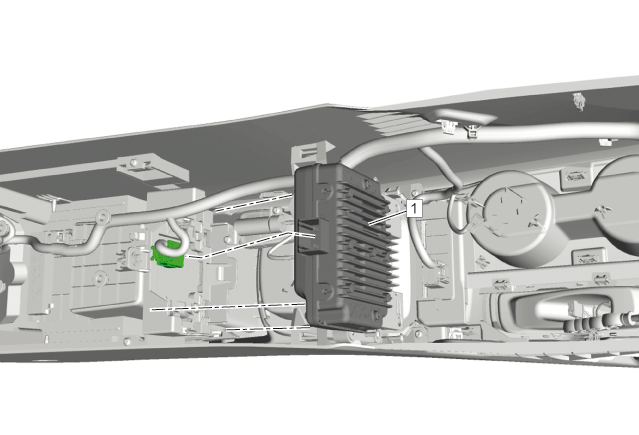

Fig 1: Accessory AC and DC Power Control Module

Courtesy of GENERAL MOTORS COMPANY

Callout	Component Name
Preliminary Procedure Remove Front Floor Console. Refer to Front Floor Console Replacement (Base)Front Floor Console Replacement (Up Level)
1	Accessory AC and DC Power Control Module Procedure Disconnect the electrical connector. Unlock the retaining tabs. When the replacement is completed, use a scan tool to perform the appropriate reset functions. Refer to Control Module References

Callout

Component Name

Accessory AC and DC Power Control Module

Procedure

Disconnect the electrical connector.
Unlock the retaining tabs.
When the replacement is completed, use a scan tool to perform the appropriate reset functions. Refer to Control Module References
