Wireless Charging System Module Replacement

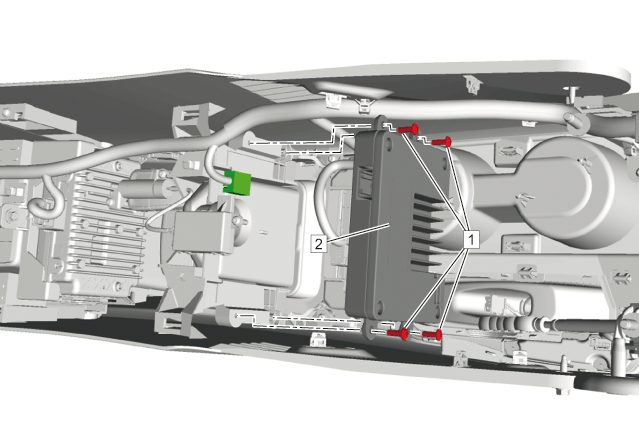

Fig 1: Wireless Charging System Module

Courtesy of GENERAL MOTORS COMPANY

Callout	Component Name
Preliminary Procedure Remove Radio Cooling Duct. Refer to Radio Cooling Duct Replacement
1	Wireless Charging System Module Bolt (Qty: 4) CAUTION: Refer to Fastener Caution Tighten 2.5 N.m (22 lb in)
2	Wireless Charging System Module Procedure Disconnect the electrical connector. When the replacement is completed, use a scan tool to perform the appropriate reset functions. Refer to Control Module References

Callout

Component Name

Preliminary Procedure
Remove Radio Cooling Duct. Refer to Radio Cooling Duct Replacement

Wireless Charging System Module Bolt (Qty: 4)

CAUTION:

Tighten
2.5 N.m (22 lb in)

Wireless Charging System Module

Procedure

Disconnect the electrical connector.
When the replacement is completed, use a scan tool to perform the appropriate reset functions. Refer to Control Module References
