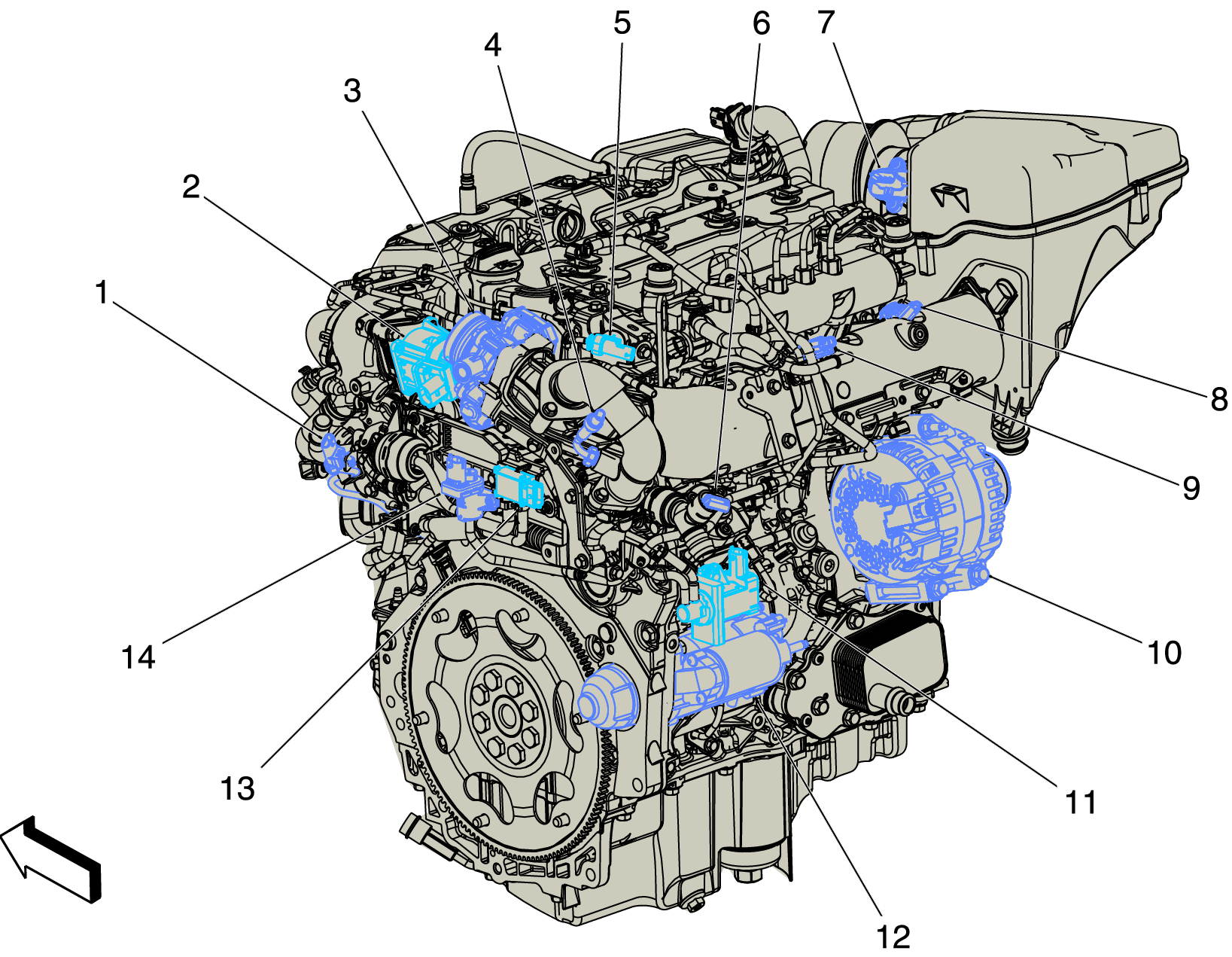

Left Rear of Engine Components (LH7)
Left Rear of Engine Components (LH7)
| Items |
|---|
| 1: B131B Exhaust Temperature Sensor 2 (LH7) B131B Exhaust Temperature Sensor 2 |
| 2: Q14 Exhaust Gas Recirculation Valve (LH7) Q14 Exhaust Gas Recirculation Valve |
| 3: Q38 Throttle Body Q38 Throttle Body (LH7) |
| 4: B130B Exhaust Gas Recirculation Temperature Sensor 2 (LH7) B130B Exhaust Gas Recirculation Temperature Sensor 2 |
| 5: B131A Exhaust Temperature Sensor 1 (LH7) B131A Exhaust Temperature Sensor 1 |
| 6: B318A Exhaust Gas Recirculation Cooler 1 Temperature Sensor - Coolant Inlet B318A Exhaust Gas Recirculation 1 Cooler Temperature Sensor - Coolant Inlet (LH7) |
| 7: B75C Multifunction Intake Air Sensor B75C Multifunction Intake Air Sensor (LH7) |
| 8: B23 Camshaft Position Sensor (LH7) B23 Camshaft Position Sensor (LH7) |
| 9: B65 Intake Manifold Pressure and Air Temperature Sensor B65 Intake Manifold Pressure and Air Temperature Sensor (LH7) |
| 10: G13 Generator G13 Generator X2 (LH7) |
| 11: Q41 Turbocharger Vane Position Control Solenoid Valve (LH7) Q41 Turbocharger Vane Position Control Solenoid Valve |
| 12: M64 Starter Motor M64 Starter Motor X1 (LH7-KL9)M64 Starter Motor X1 (LH7+KL9) |
| 13: B154 Diesel Particulate Filter Exhaust Differential Pressure Sensor (LH7) B154 Diesel Particulate Filter Exhaust Differential Pressure Sensor (LH7) |
| 14: Q47 Exhaust Gas Recirculation Cooler Bypass Solenoid Valve (LH7) Q47 Exhaust Gas Recirculation Cooler Bypass Solenoid Valve |
