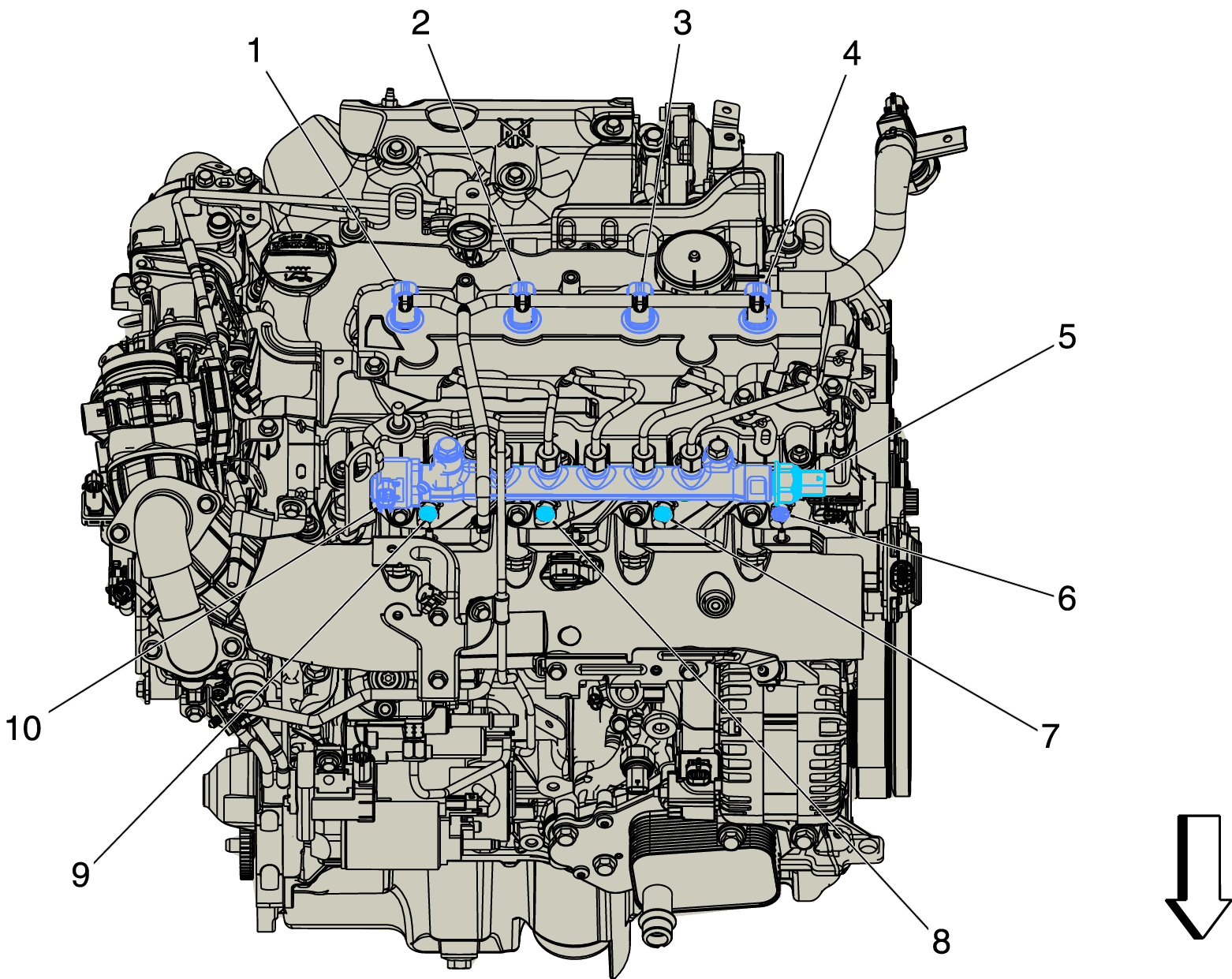

Top View of Engine Components (LH7)
Top View of Engine Components (LH7)
| Items |
|---|
| 1: Q17D Fuel Injector 4 Q17D Fuel Injector 4 (LH7) |
| 2: Q17C Fuel Injector 3 Q17C Fuel Injector 3 (LH7) |
| 3: Q17B Fuel Injector 2 Q17B Fuel Injector 2 (LH7) |
| 4: Q17A Fuel Injector 1 Q17A Fuel Injector 1 (LH7) |
| 5: B47B Fuel Rail Pressure Sensor |
| 6: E12A Glow Plug 1 (LH7) E12A Glow Plug 1 |
| 7: E12B Glow Plug 2 (LH7) E12B Glow Plug 2 |
| 8: E12C Glow Plug 3 (LH7) E12C Glow Plug 3 |
| 9: E12D Glow Plug 4 (LH7) E12D Glow Plug 4 |
| 10: Q18B Fuel Pressure Regulator 2 (LH7) Q18B Fuel Pressure Regulator 2 |
