Instrument Panel Components
Instrument Panel Components

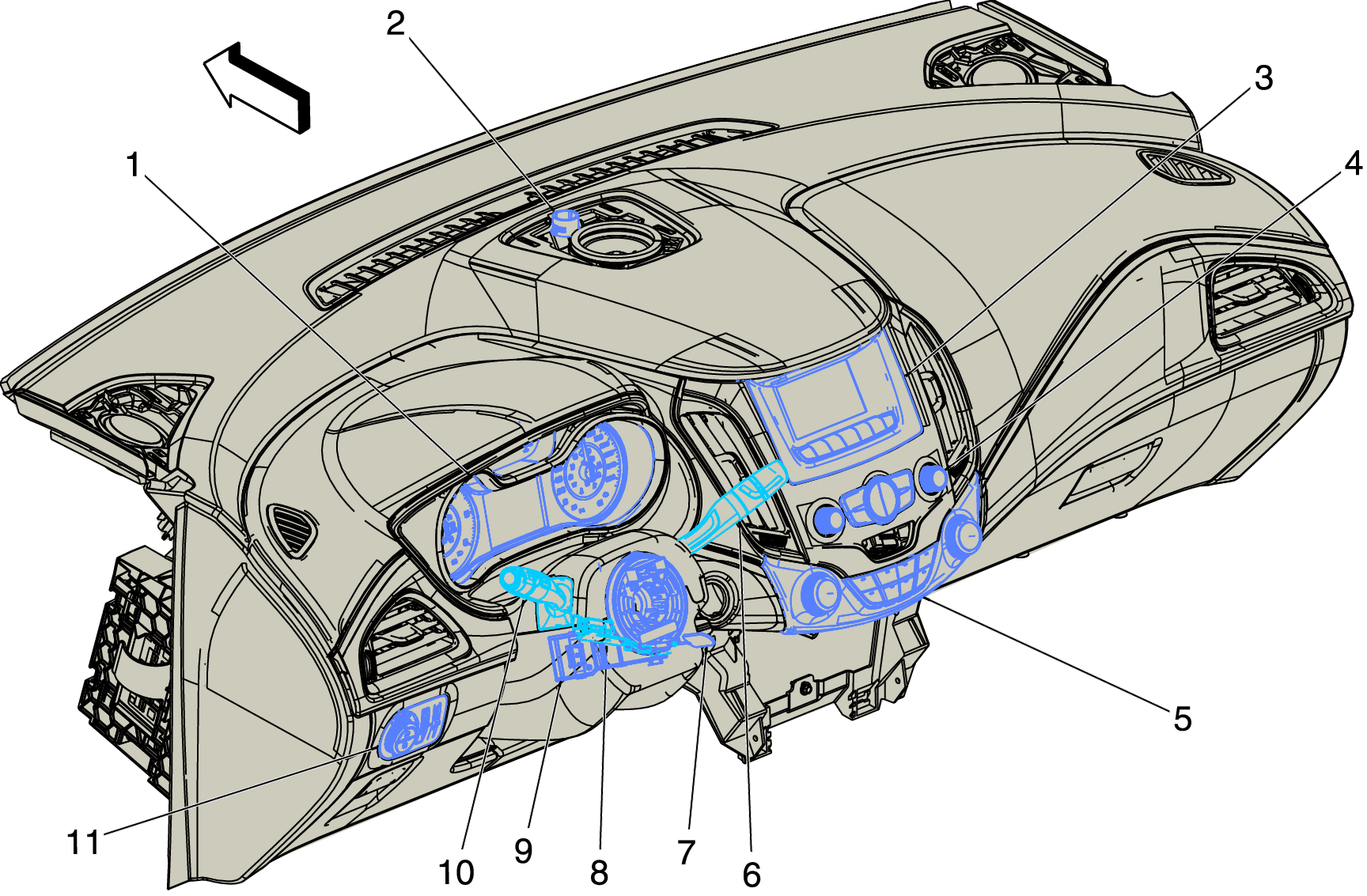

| Items |
|---|
| 1: P16 Instrument Cluster P16 Instrument Cluster |
| 2: B10B Ambient Light/Sunload Sensor B10B Ambient Light/Sunload Sensor |
| 3: P17 Info Display Module P17 Info Display Module X1 |
| 4: A22 Radio Controls |
| 5: A26 HVAC Controls A26 HVAC Controls |
| 6: S82 Windshield Wiper/Washer Switch S82 Windshield Wiper/Washer Switch |
| 7: X85 Steering Wheel Air Bag Coil X85 Steering Wheel Air Bag Coil X1 |
| 8: K89 Immobilizer Control Module K89 Immobilizer Control Module (-ATH/-BTM)K89 Immobilizer Control Module (ATH/BTM) |
| 9: S39 Ignition Switch S39 Ignition Switch |
| 10: S78 Turn Signal/Multifunction Switch S78 Turn Signal/Multifunction Switch |
| 11: S30 Headlamp Switch S30 Headlamp Switch |
