BCM Inputs and Outputs (1 of 3)

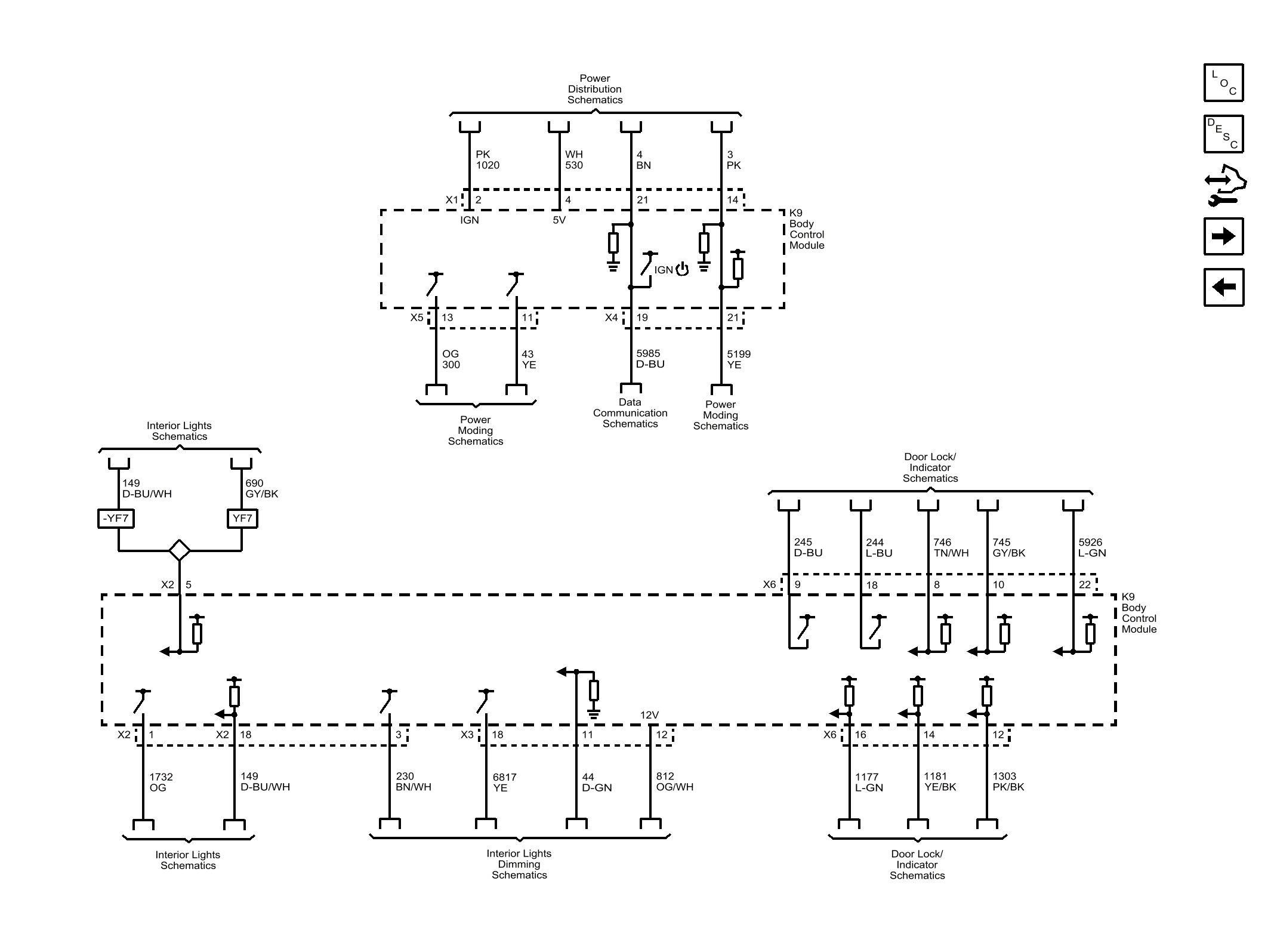

Fig 1: BCM Inputs and Outputs (1 of 3)
Courtesy of GENERAL MOTORS COMPANY
Courtesy of GENERAL MOTORS COMPANY
