Removal Procedure

  1. Remove Emission Reduction Fluid Tank - Refer to Emission Reduction Fluid Tank Replacement (Short Wheel Base)  or Emission Reduction Fluid Tank Replacement (Long Wheel Base)

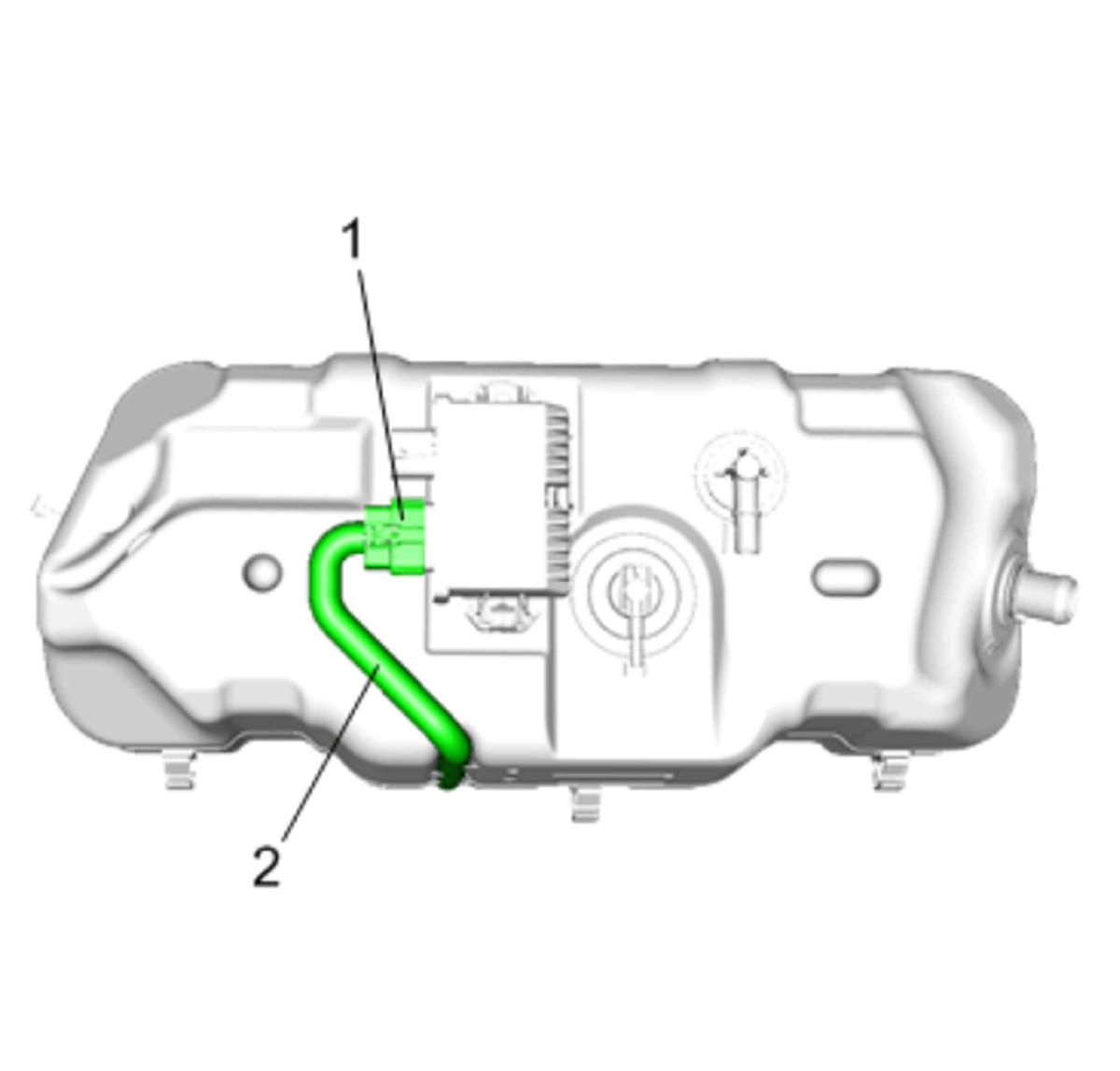

  2. Disconnect Emission Reduction Fluid Pump Module Wiring Harness Connector
    GM4603811Courtesy of
  3. Remove Emission Reduction Fluid Pump Module Wiring Harness

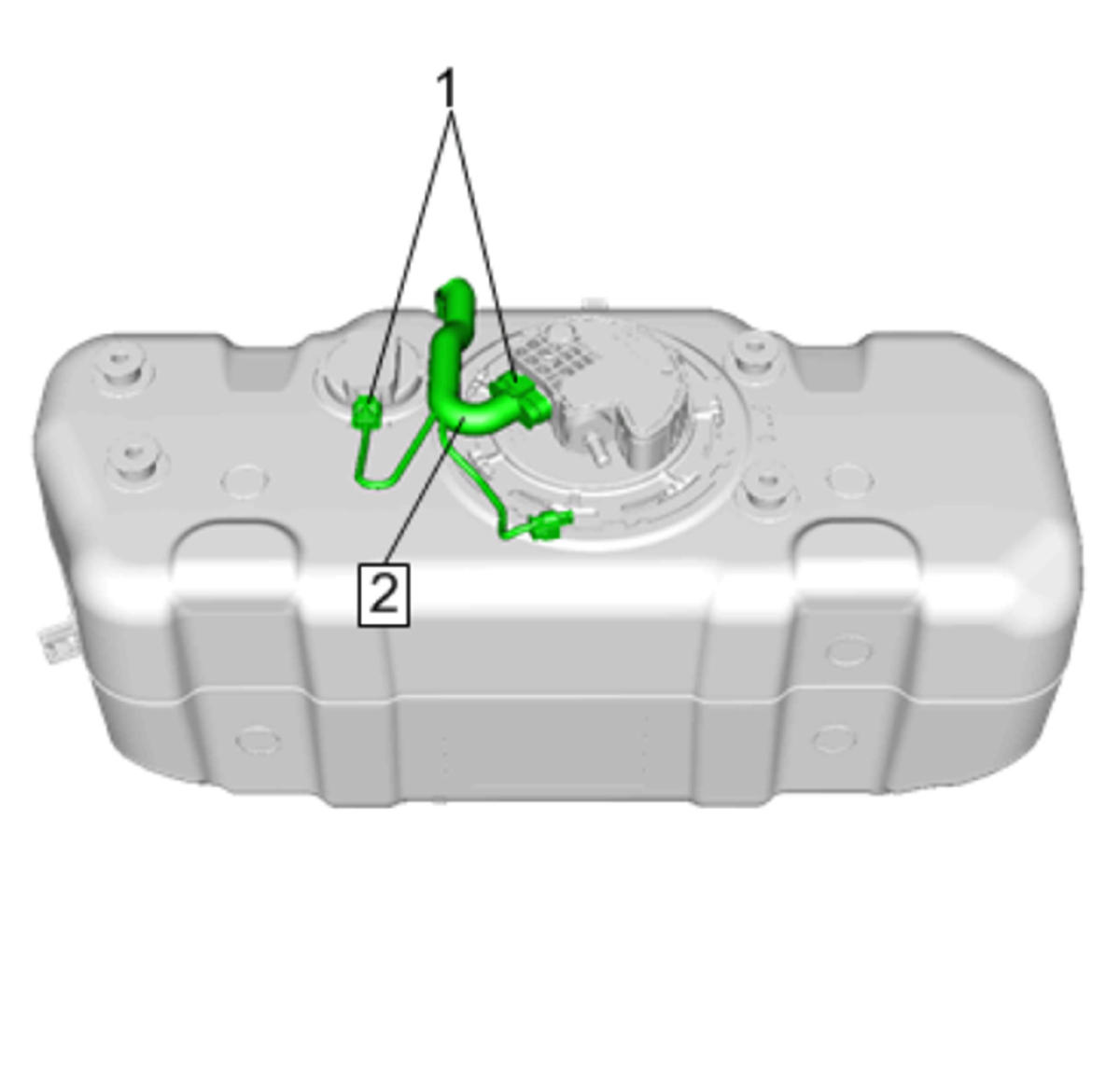

  4. Disconnect Emission Reduction Fluid Pump Module Wiring Harness Connector [2x]
    GM4603817Courtesy of
  5. Remove Emission Reduction Fluid Pump Module Wiring Harness
