Chevrolet
>>
2017
>>
Impala Premier, Gas
>>
Repair and Diagnosis
>>
Accessories & Equipment
>>
Entertainment Systems
>>
Cellular System, Entertainment System, And Navigation System
>>
Schematic Wiring Diagrams
>>
Radio/Navigation System Wiring Schematics (IO3)
>>
Auxiliary Inputs
April 5, 2026:
LEMON Manuals is launched!
Read the announcement.
Auxiliary Inputs

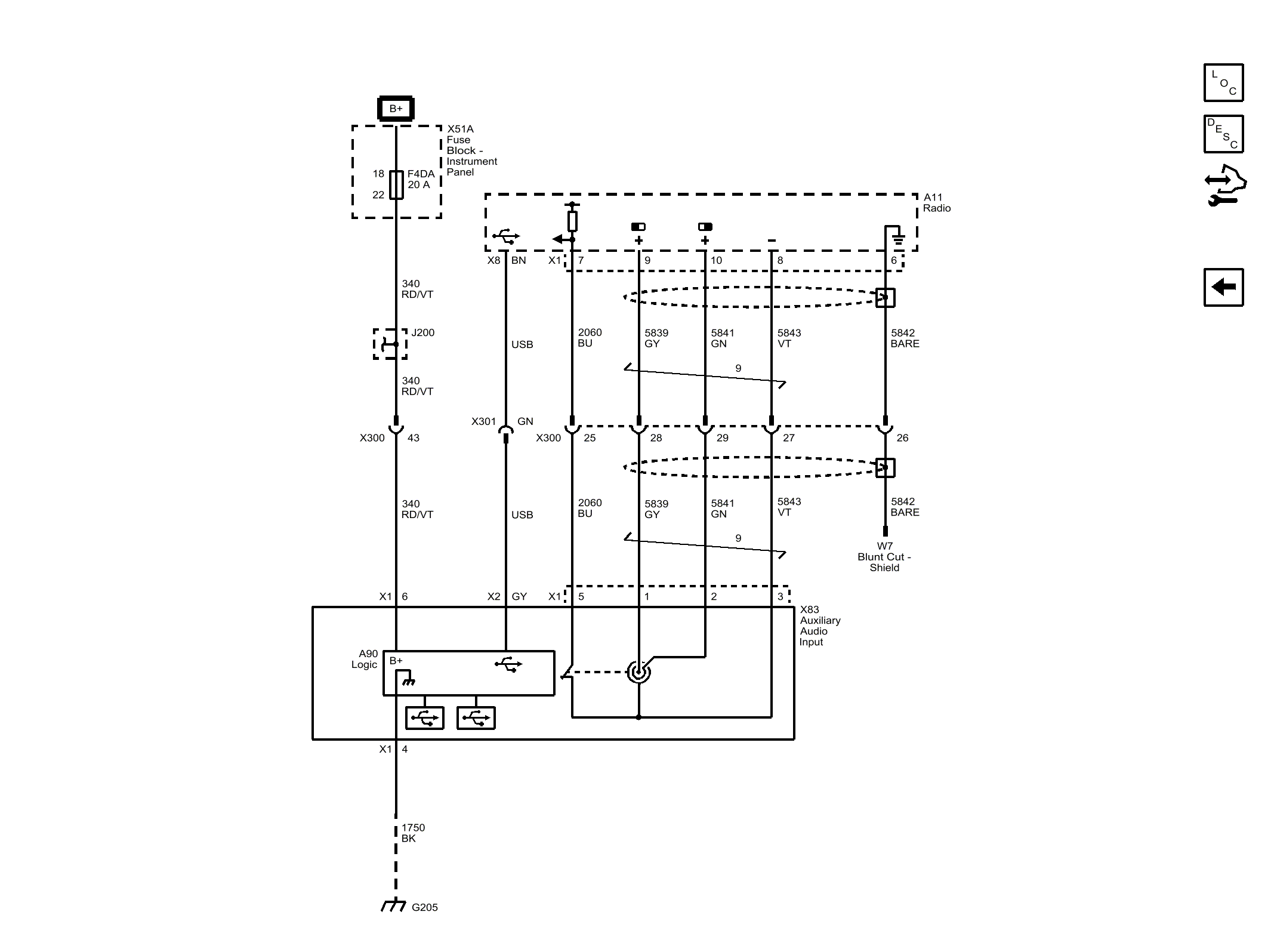

Fig 1: Auxiliary Inputs
Courtesy of GENERAL MOTORS COMPANY
Courtesy of GENERAL MOTORS COMPANY
