Human Machine Interface and Display, Power, Ground and Serial Data (-MAW)

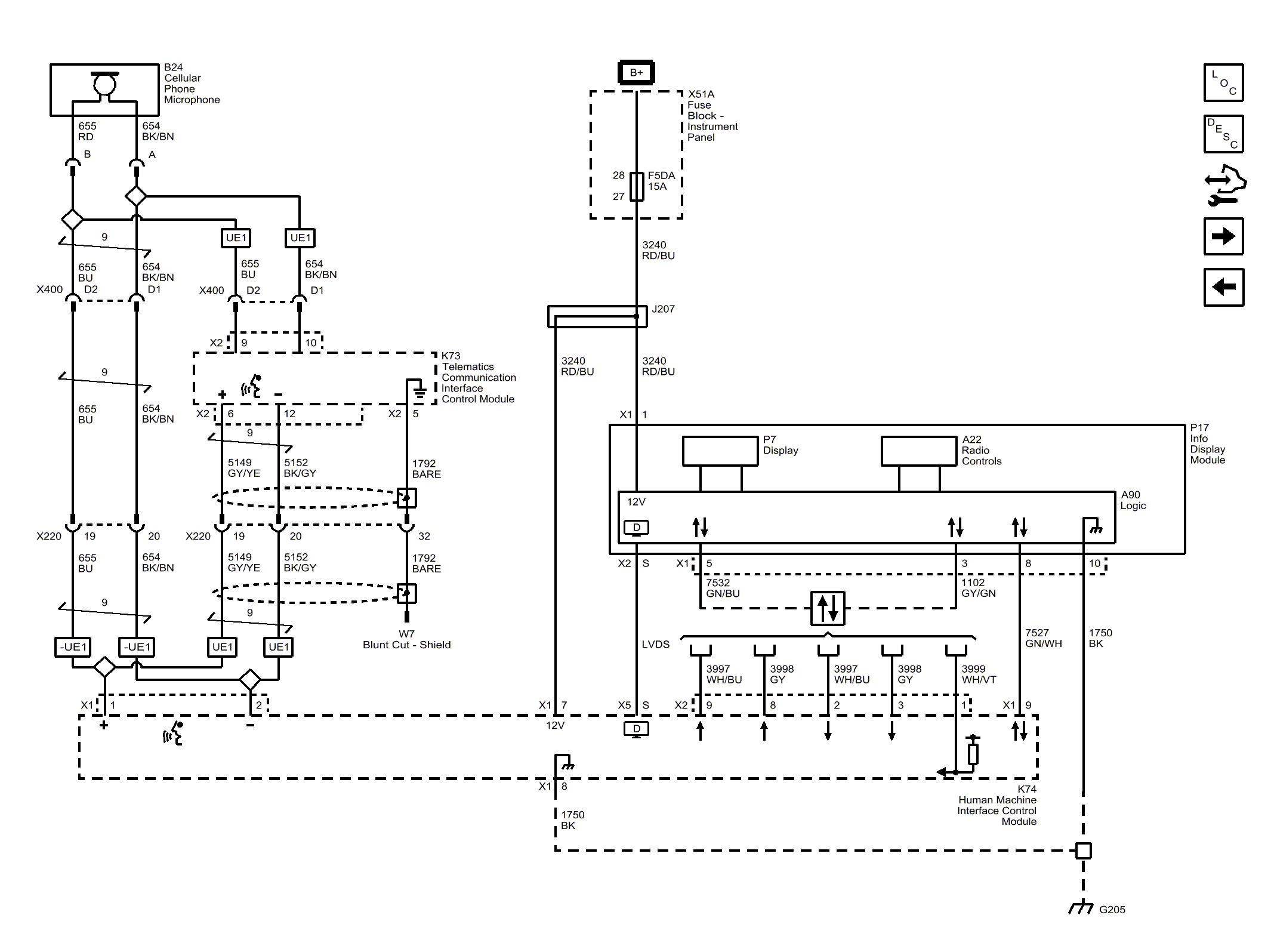

Fig 1: Human Machine Interface and Display, Power, Ground and Serial Data (-MAW)
GM4355250Courtesy of GENERAL MOTORS COMPANY
