Rear of Instrument Panel Components

Rear of Instrument Panel Components

Items
1: K74 Human Machine Interface Control Module (IO5 or IO6) K74 Human Machine Interface Control Module X1K74 Human Machine Interface Control Module X2K74 Human Machine Interface Control Module X3K74 Human Machine Interface Control Module X4K74 Human Machine Interface Control Module X5K74 Human Machine Interface Control Module X7
2: A11 Radio A11 Radio X1A11 Radio X2A11 Radio X4A11 Radio X6A11 Radio X7A11 Radio X8
3: X51A Fuse Block - Instrument Panel X51A Fuse Block - Instrument Panel X1 (X1)X51A Fuse Block - Instrument Panel X2 (X2)
4: K9 Body Control Module K9 Body Control Module X1K9 Body Control Module X2K9 Body Control Module X3K9 Body Control Module X4K9 Body Control Module X5K9 Body Control Module X6K9 Body Control Module X7
5: K56 Serial Data Gateway Module K56 Serial Data Gateway Module X1K56 Serial Data Gateway Module X2
6: T10J Keyless Entry Antenna - Center Console Front (BTM) T10J Keyless Entry Antenna - Center Console Front

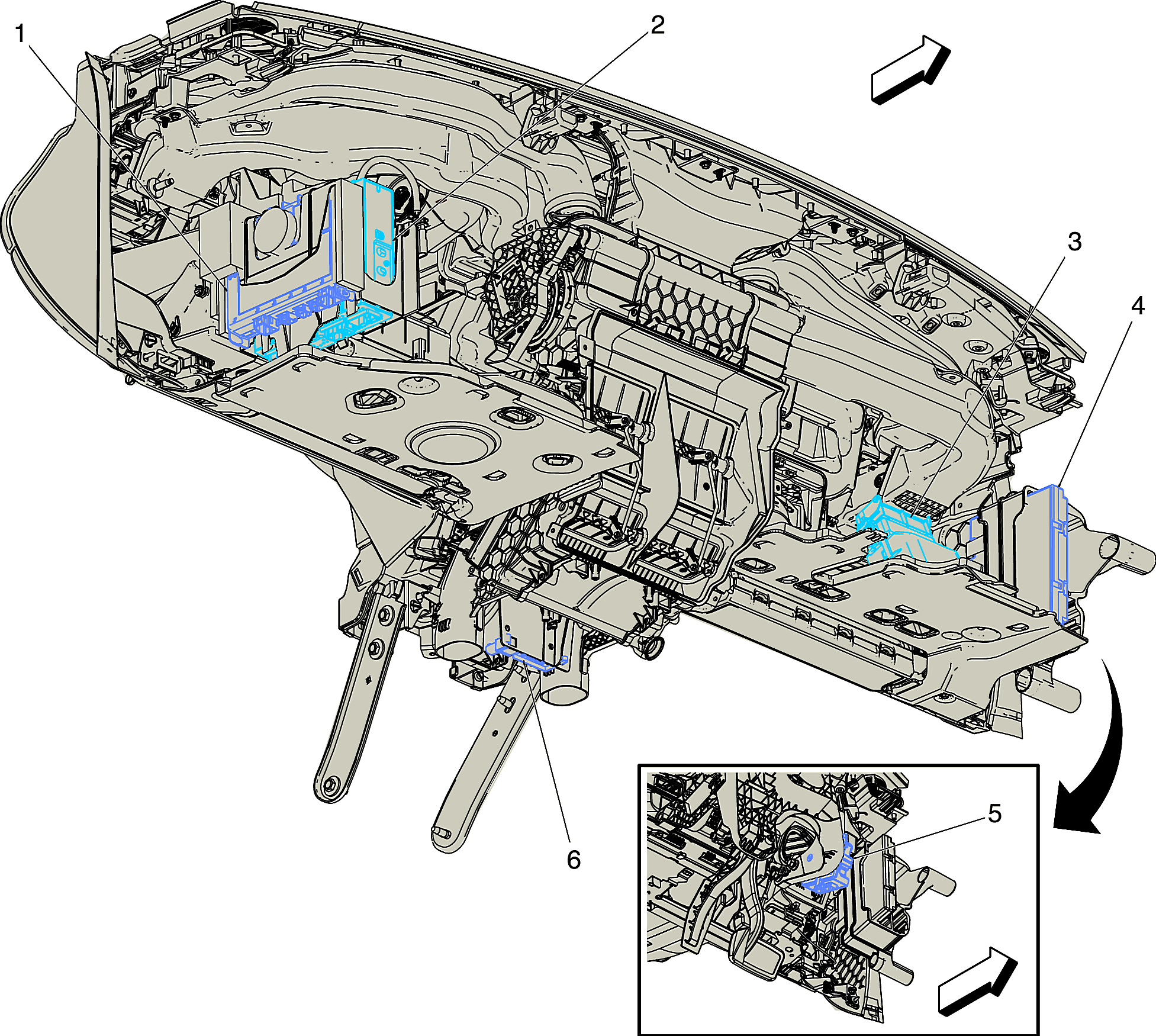

Fig 1: Rear of Instrument Panel Components
GM4419342Courtesy of GENERAL MOTORS COMPANY
