Alternative Fuel Rail Components (LFR with FHV)

Alternative Fuel Rail Components (LFR with FHV)

Items
1: Q70A Alternative Fuel Injector 1 (FHV) Q70A Alternative Fuel Injector 1
2: Q70B Alternative Fuel Injector 2 (FHV) Q70B Alternative Fuel Injector 2
3: Q70C Alternative Fuel Injector 3 (FHV) Q70C Alternative Fuel Injector 3
4: Q70D Alternative Fuel Injector 4 (FHV) Q70D Alternative Fuel Injector 4
5: Q70E Alternative Fuel Injector 5 (FHV) Q70E Alternative Fuel Injector 5
6: B229 Alternative Fuel Rail Pressure/Temperature Sensor (FHV) B229 Alternative Fuel Rail Pressure/Temperature Sensor
7: Q70F Alternative Fuel Injector 6 (FHV) Q70F Alternative Fuel Injector 6

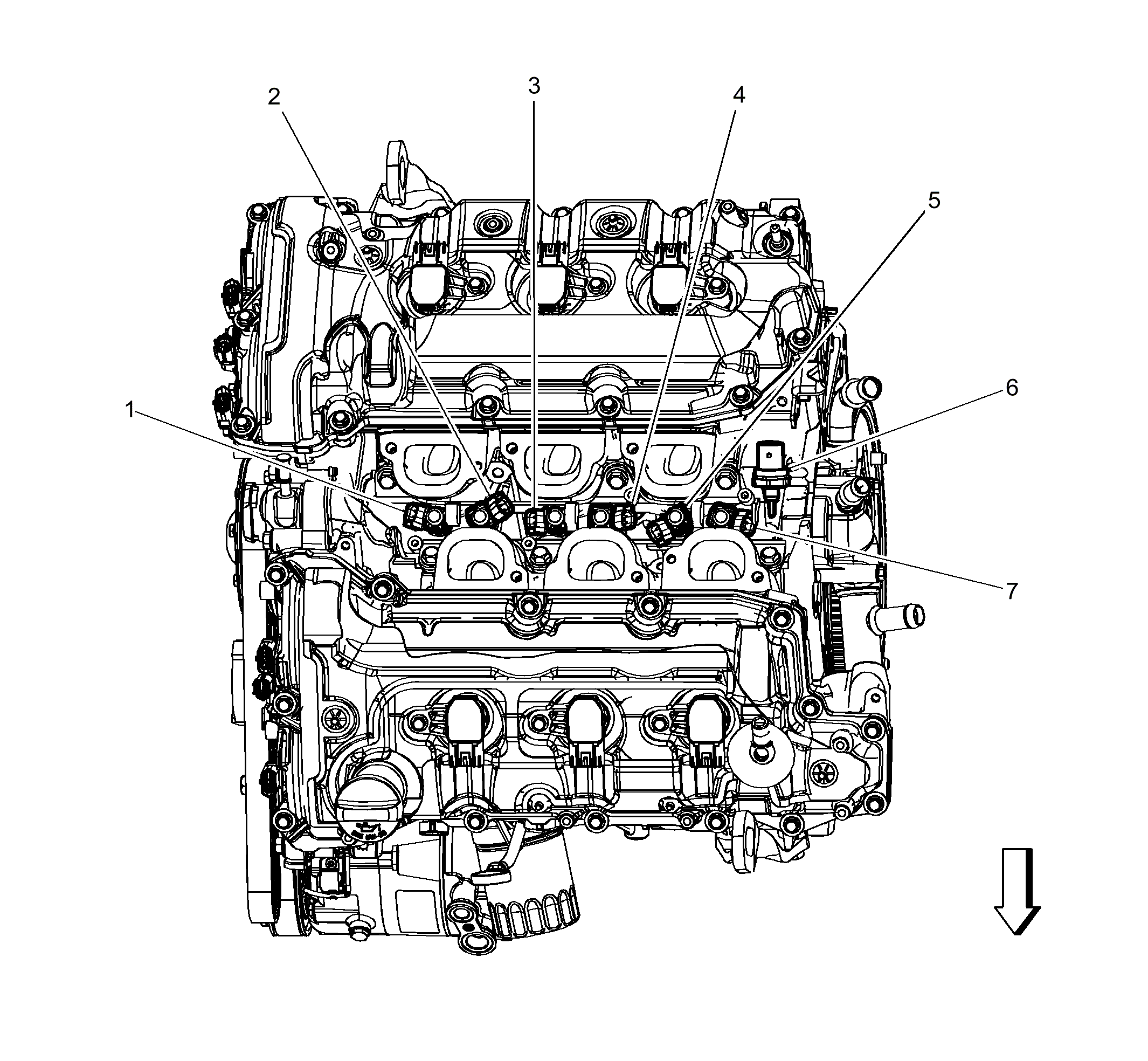

Fig 1: Alternative Fuel Rail Components (LFR with FHV)
GM4054430Courtesy of GENERAL MOTORS COMPANY
