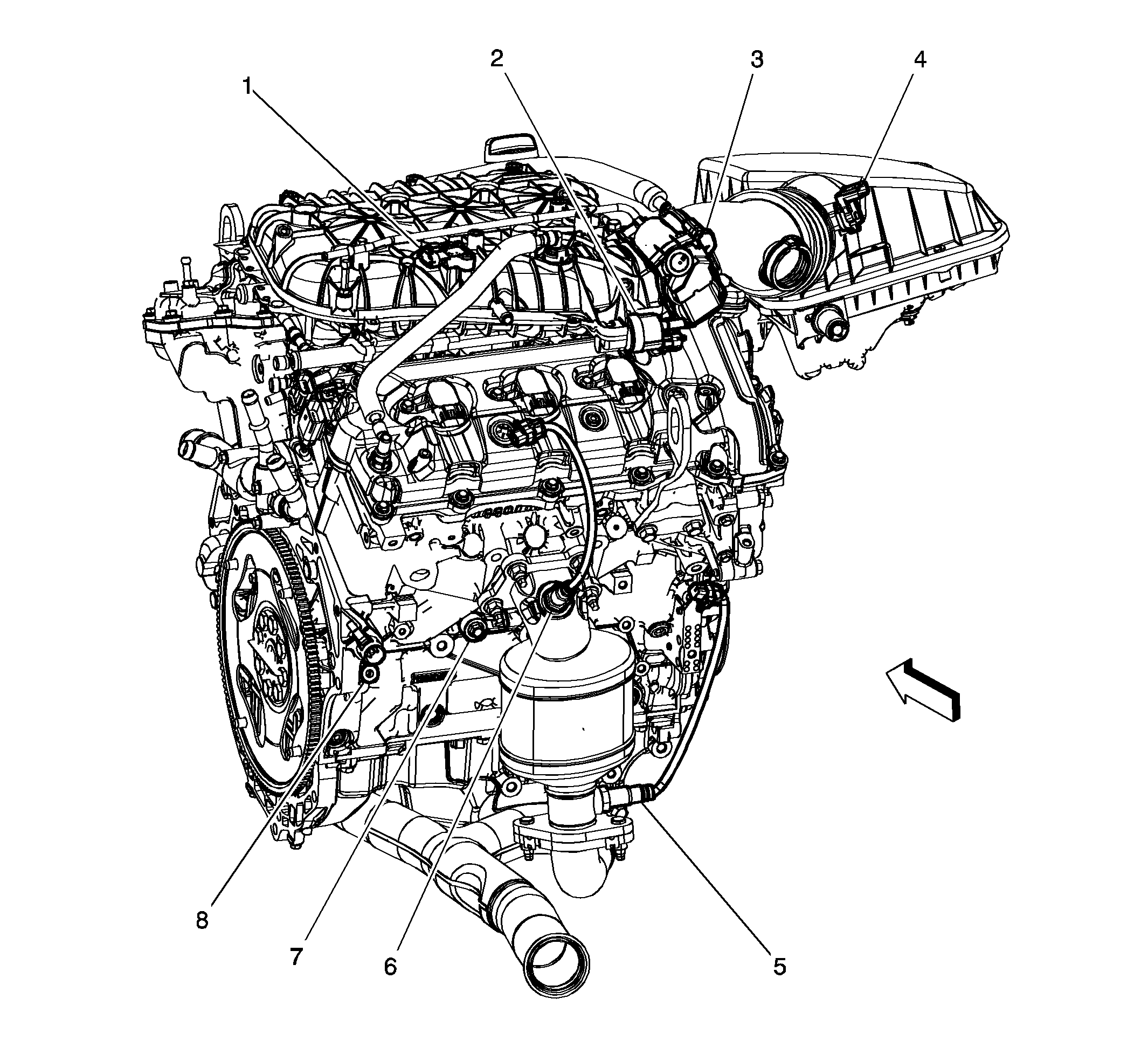

Right Rear of Engine Components (LFR)
Right Rear of Engine Components (LFR)
| Items |
|---|
| 1: B74 Manifold Absolute Pressure Sensor B74 Manifold Absolute Pressure Sensor |
| 2: Q12 Evaporative Emission Purge Solenoid Valve Q12 Evaporative Emission Purge Solenoid Valve (LFR/LFX) |
| 3: Q38 Throttle Body Q38 Throttle Body (LFX/LCV) |
| 4: B75B Mass Air Flow/Intake Air Temperature Sensor (LFR) B75B Mass Air Flow/Intake Air Temperature Sensor |
| 5: B52D Heated Oxygen Sensor - Bank 1 Sensor 2 (LFR or LFX) B52D Heated Oxygen Sensor - Bank 1 Sensor 2 |
| 6: B52C Heated Oxygen Sensor - Bank 1 Sensor 1 (LFR or LFX) B52C Heated Oxygen Sensor - Bank 1 Sensor 1 |
| 7: B68A Knock Sensor 1 B68A Knock Sensor 1 (LCV)B68A Knock Sensor 1 |
| 8: B26 Crankshaft Position Sensor B26 Crankshaft Position Sensor (LFR/LFX) |
