Steering Wheel Heat Control Module Replacement

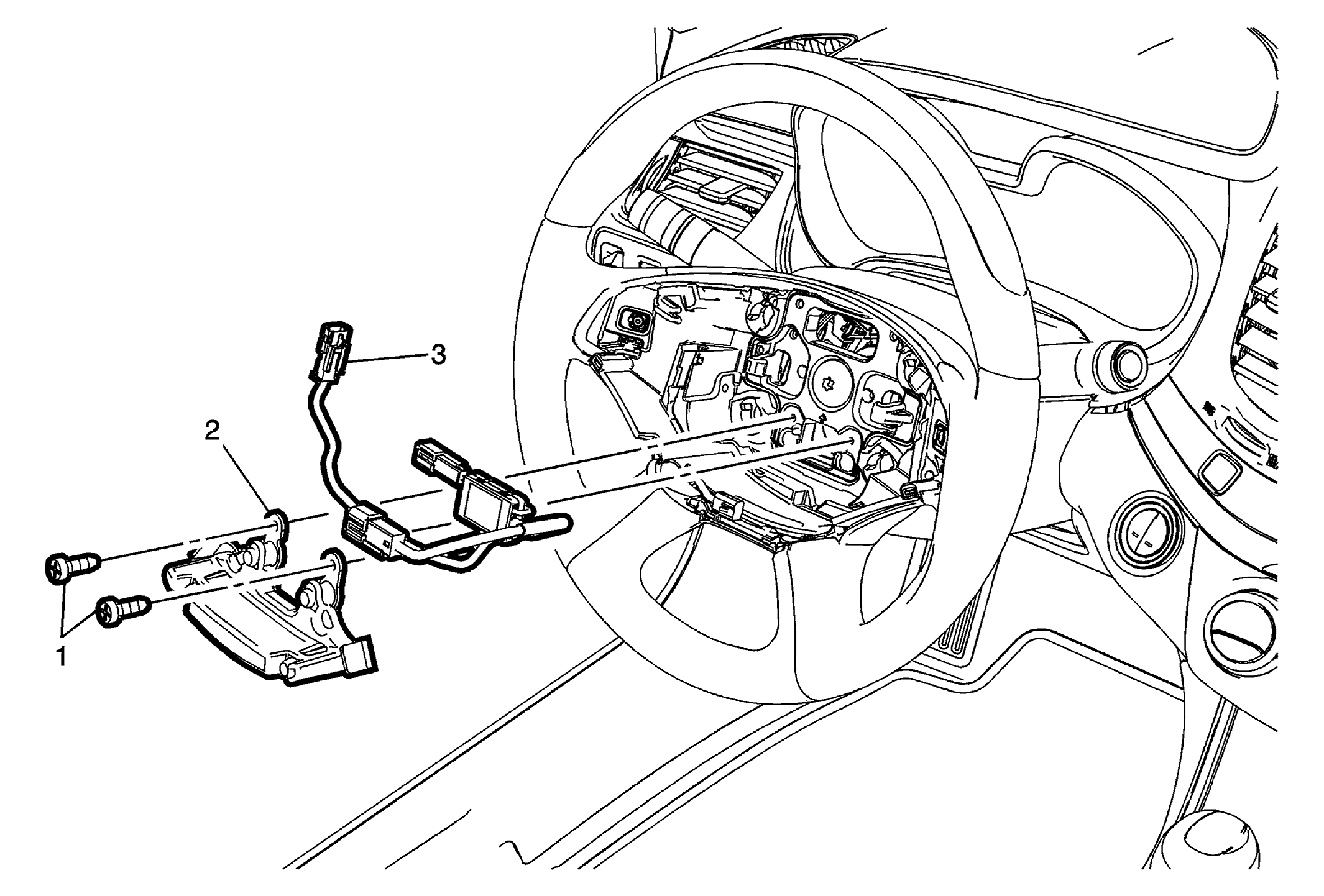

Fig 1: Steering Wheel Heat Control Module

Courtesy of GENERAL MOTORS COMPANY

Callout	Component Name
Preliminary Procedure Steering Wheel Spoke Cover Replacement
1	Steering Wheel Mass Damper Fastener (Qty: 2) CAUTION: Refer to Fastener Caution .
2	Steering Wheel Mass Damper
3	Steering Wheel Heat Control Module Procedure Disconnect the electrical connectors.
