Engine Oil Pressure Sensor Replacement

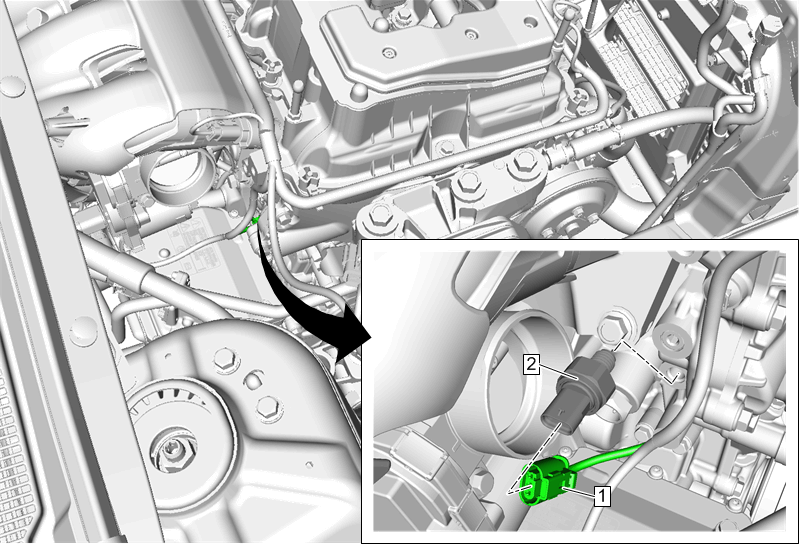

Fig 1: Engine Oil Pressure Sensor

Courtesy of GENERAL MOTORS COMPANY

Callout	Component Name
Preliminary Procedures Intake Manifold Cover Replacement Air Cleaner Outlet Duct Replacement
1	Electrical Connector
2	Engine Oil Pressure Sensor CAUTION: Refer to Component Fastener Tightening Caution . Tighten 35 N.m (26 lb ft)

Callout

Component Name

Preliminary Procedures

Electrical Connector

Engine Oil Pressure Sensor

CAUTION: Refer to Component Fastener Tightening Caution .

Tighten
35 N.m (26 lb ft)
