Pedestrian Alert (HP4)

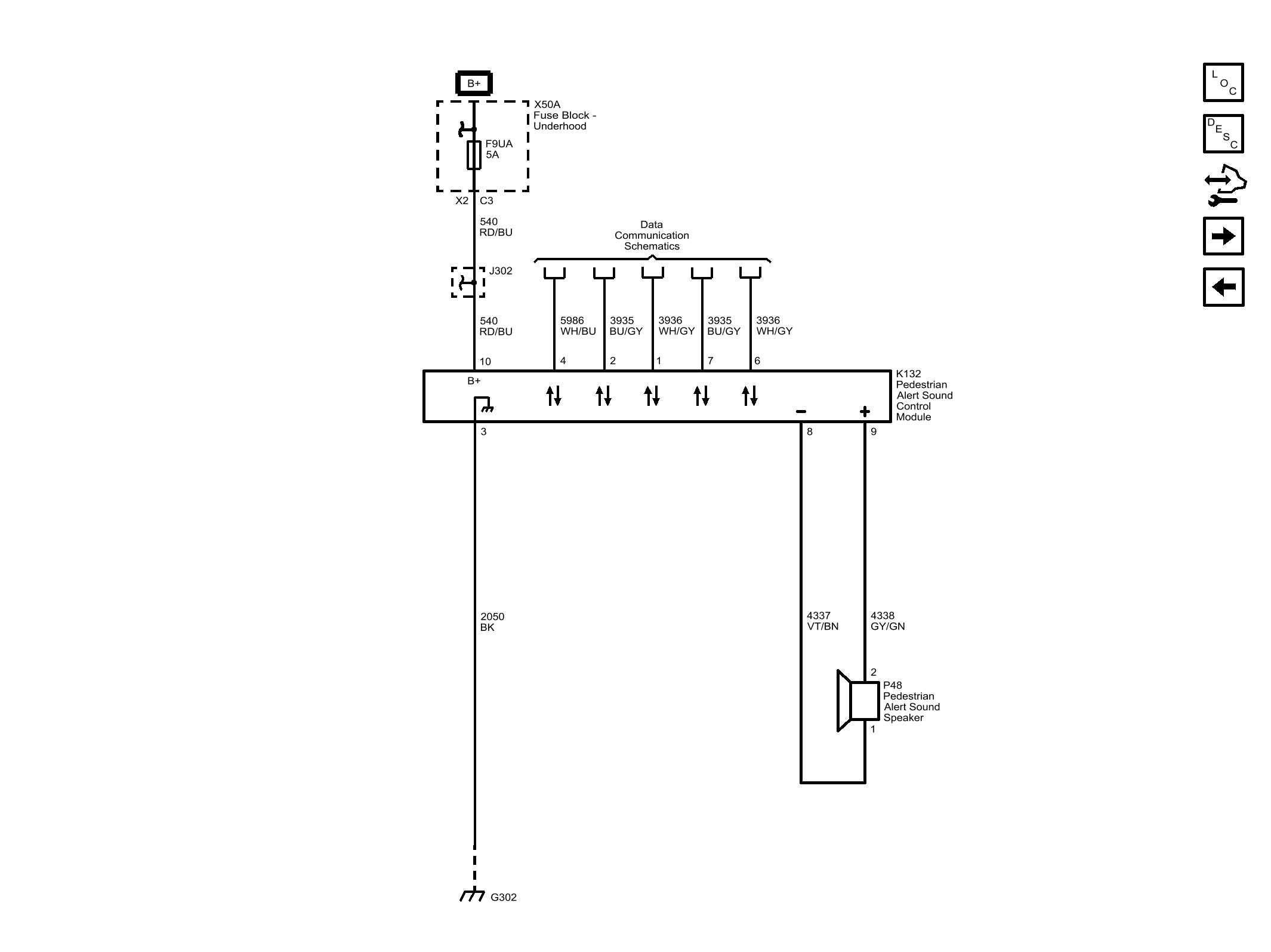

Fig 1: Pedestrian Alert (HP4)
Courtesy of GENERAL MOTORS COMPANY
Courtesy of GENERAL MOTORS COMPANY
