Front Side Door Window Weatherstrip Replacement

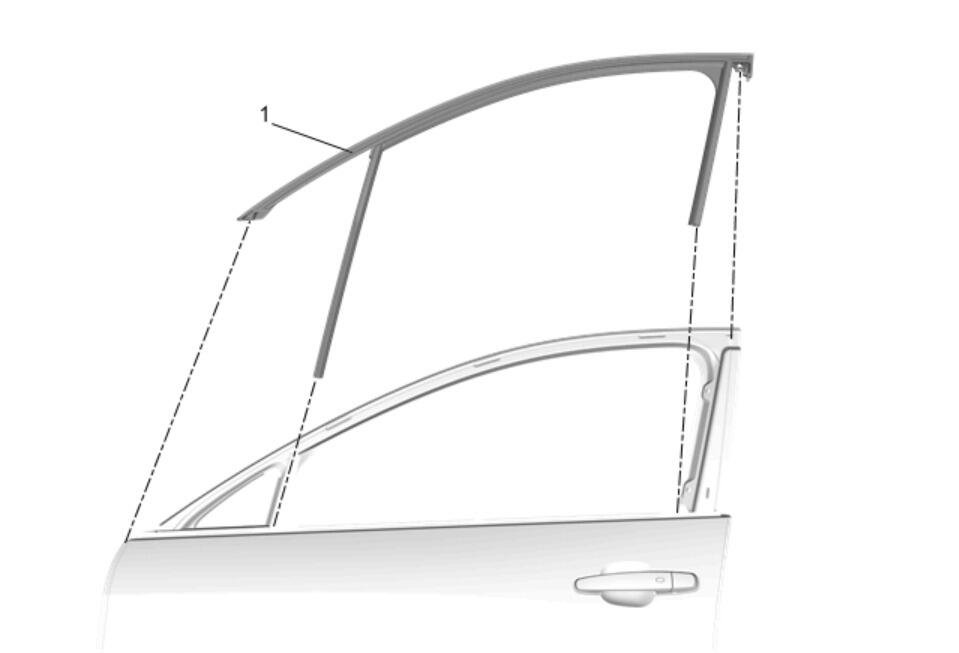

Fig 1: Front Side Door Window Weatherstrip
GM4214818Courtesy of GENERAL MOTORS COMPANY
Callout Component Name

Preliminary Procedures

  1. Outside Rearview Mirror Replacement
  2. Remove the front side door water deflector.
  3. Radio Front Side Door Speaker Replacement
  4. Front Side Door Window Belt Reveal Molding Replacement
  5. Front Side Door Window Frame Rear Applique Replacement
  6. Front Side Door Window Upper Reveal Molding Replacement
1 Front Side Door Window Weatherstrip
