Fuel Pump Power Control Module Replacement

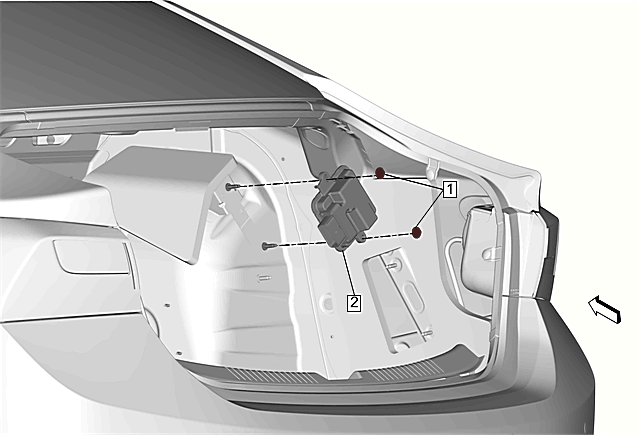

Fig 1: Fuel Pump Power Control Module
GM4231333Courtesy of GENERAL MOTORS COMPANY
Callout Component Name
Preliminary Procedure
Rear Compartment Side Trim - Reposition Rear Compartment Side Trim Replacement - Right Side (Without HP4)Rear Compartment Side Trim Replacement - Right Side (With HP4)
1 Fuel Pump Power Control Module Fastener [2x]
CAUTION: Refer to Fastener Caution .

Tighten
9 N.m (80 lb in)
2 Fuel Pump Power Control Module

Procedure

  1. Disconnect the electrical connector.
  2. If replacing, reprogram the module. Refer to Control Module References
