Instrument Panel Components - Rear side

Items
1: K74 Human Machine Interface Control Module (IO5/IO6) K74 Human Machine Interface Control Module X1 (IO5/IO6)K74 Human Machine Interface Control Module X2 (IO5/IO6)K74 Human Machine Interface Control Module X3 (IO4/IO5/IO6)K74 Human Machine Interface Control Module X4 (IO4/IO5/IO6)K74 Human Machine Interface Control Module X5 (IO5/IO6)
2: T15 Navigation Antenna Signal Splitter (IO6)
3: E1W Accent Lamp - Instrument Panel E1W Accent Lamp - Instrument Panel
4: P19B Speaker - Center Instrument Panel P19B Speaker - Center Instrument Panel (UQA)
5: X51A Fuse Block - Instrument Panel X51A Fuse Block - Instrument Panel X51A Fuse Block - Instrument Panel, Wire Entry
6: X84 Data Link Connector X84 Data Link Connector
7: K73 Telematics Communication Interface Control Module (UE1) K73 Telematics Communication Interface Control Module X1 (UE1)
8: C3 Telematics Communication Interface Control Module Battery (UE1) C3 Telematics Communication Interface Control Module Battery (UE1)
9: E40 Electrical Auxiliary Heater (C32) E40 Electrical Auxiliary Heater X1 (C32)E40 Electrical Auxiliary Heater X2 (C32)
10: K33 HVAC Control Module K33 HVAC Control Module X1 K33 HVAC Control Module X2 K33 HVAC Control Module X3 K33 HVAC Control Module X4
11: A11 Radio A11 Radio X1 (IO5/IO6)A11 Radio X1 (IOA)A11 Radio X1 (IO5/IO6/IP1)

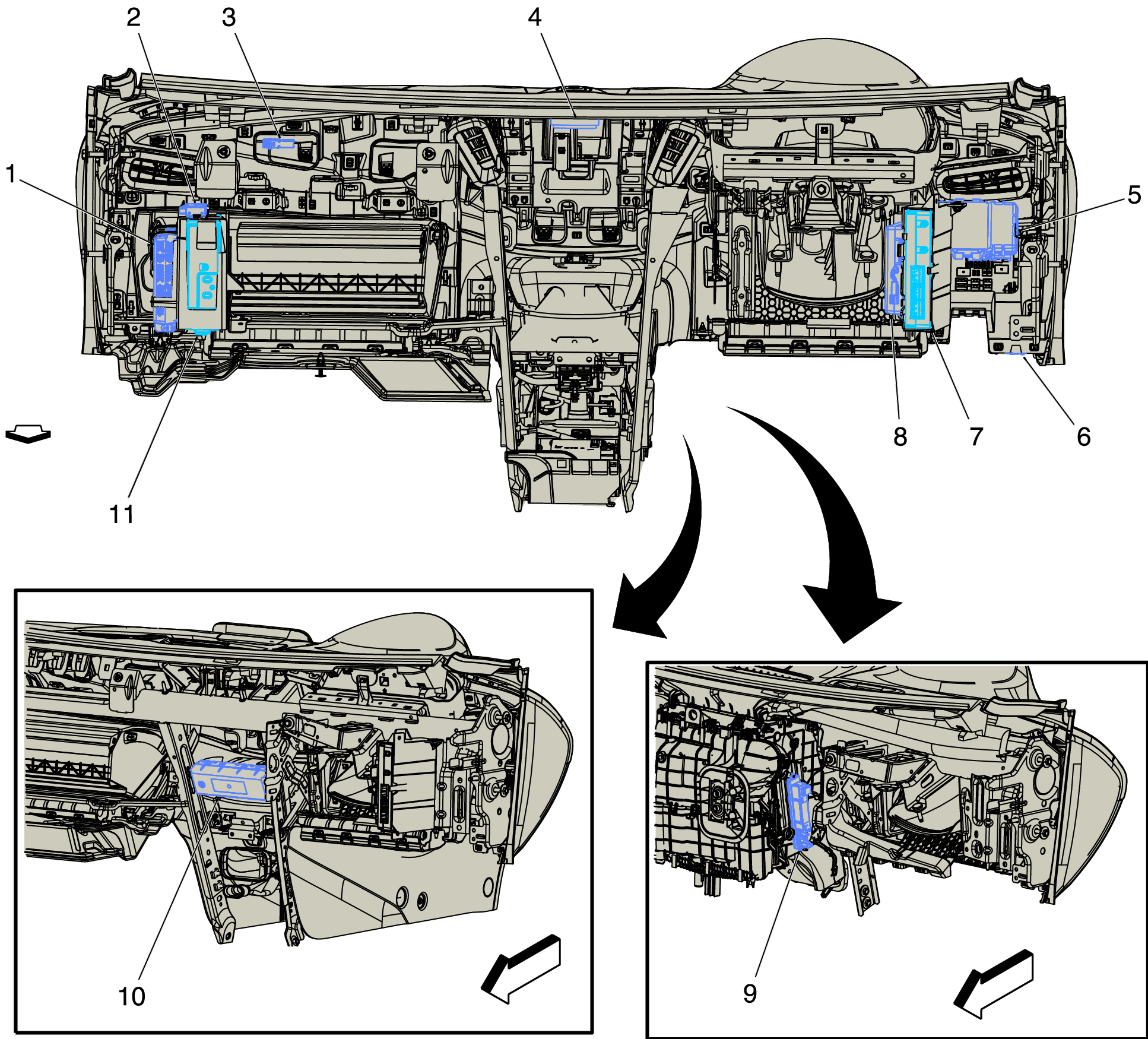

Fig 1: Instrument Panel Components - Rear side

Courtesy of GENERAL MOTORS COMPANY
