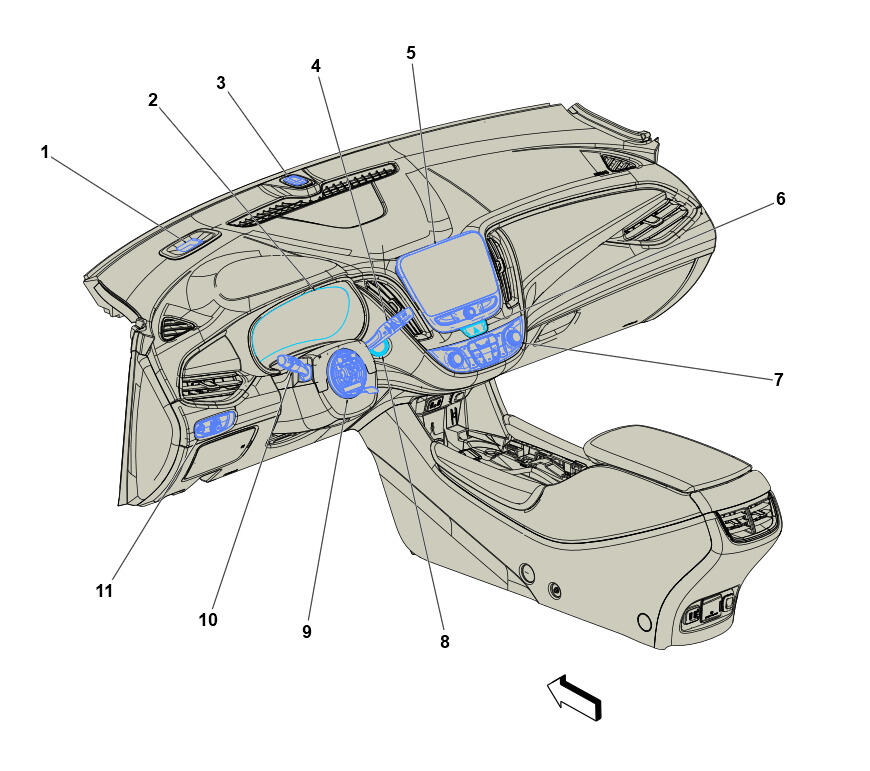

Instrument Panel Components - Upper
Instrument Panel Components - Upper
| Items |
|---|
| 1: P43 Collision Alert Indicators (UEU) P43 Collision Alert Indicators |
| 2: P16 Instrument Cluster P16 Instrument Cluster |
| 3: B10B Ambient Light/Sunload Sensor B10B Ambient Light/Sunload Sensor |
| 4: S82 Windshield Wiper/Washer Switch S82 Windshield Wiper/Washer Switch |
| 5: P17 Info Display Module P17 Info Display Module X1 (IO5/IO6)P17 Info Display Module X2 (IO5/IO6) |
| 6: S26 Hazard Warning Switch |
| 7: A26 HVAC Controls A26 HVAC Controls |
| 8: S38 Ignition Mode Switch |
| 9: X85 Steering Wheel Air Bag Coil X85 Steering Wheel Air Bag Coil X1 |
| 10: S78 Turn Signal/Multifunction Switch S78 Turn Signal/Multifunction Switch |
| 11: S30 Headlamp Switch |
