Amplifier (UQA)

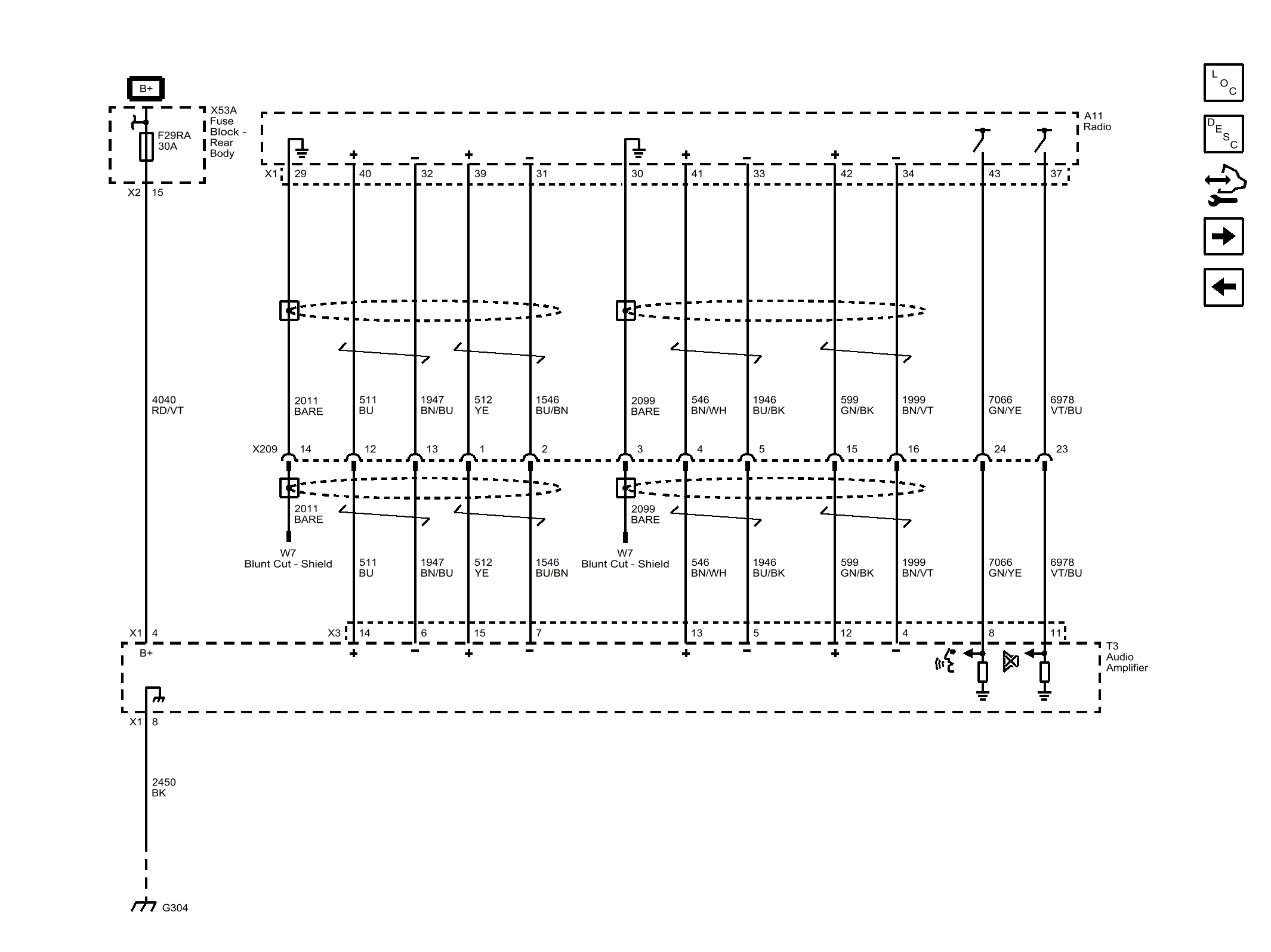

Fig 1: Amplifier (UQA)
Courtesy of GENERAL MOTORS COMPANY
Courtesy of GENERAL MOTORS COMPANY
