Backup Lamp Bulb Replacement

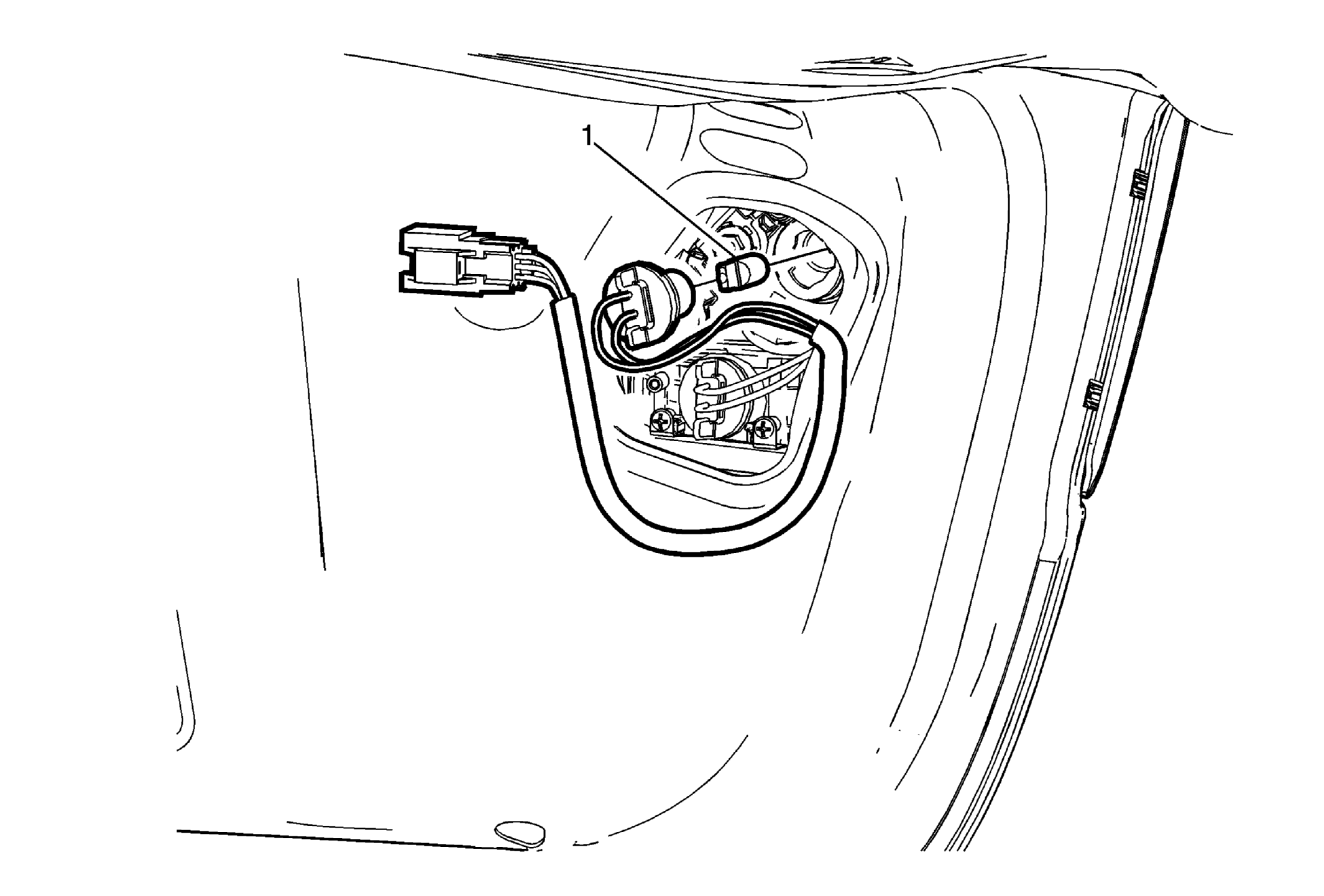

Fig 1: Backup Lamp Bulb

Courtesy of GENERAL MOTORS COMPANY

Callout	Component Name
Preliminary Procedure Remove the rear compartment lid carpet. Refer to Rear Compartment Lid Carpet Replacement .
1	Backup Lamp Bulb Procedure Rotate backup lamp bulb socket counterclockwise and pull from the tail lamp. Pull backup lamp bulb straight out from the backup lamp bulb socket.

Callout

Component Name

Preliminary Procedure
Remove the rear compartment lid carpet. Refer to Rear Compartment Lid Carpet Replacement .

Backup Lamp Bulb

Procedure
