Rear Side Door Stationary Window Channel Replacement

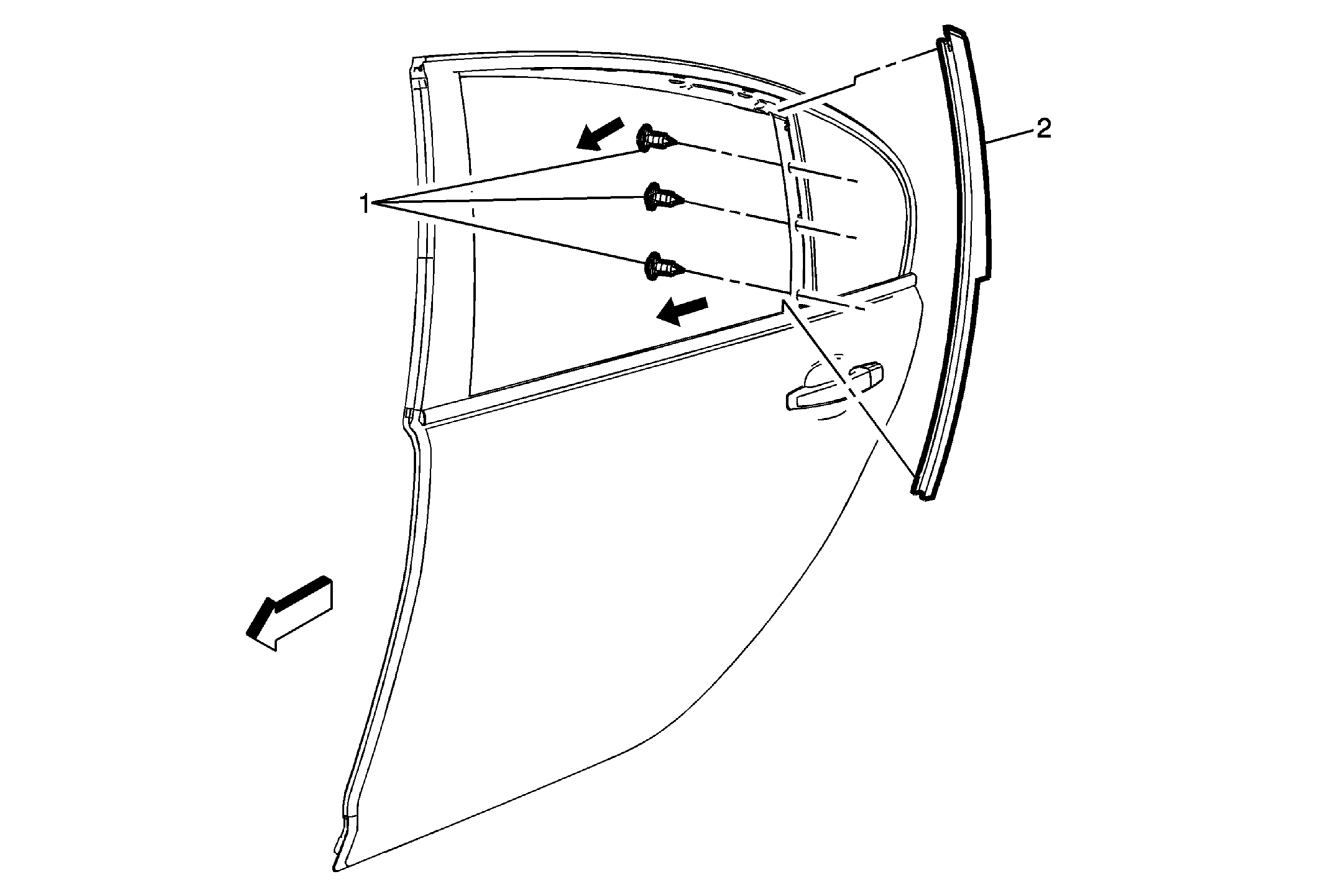

Fig 1: Rear Side Door Stationary Window Channel

Courtesy of GENERAL MOTORS COMPANY

Callout	Component Name
Preliminary Procedure Remove the rear side door window. Refer to Rear Side Door Window Replacement .
1	Rear Side Door Stationary Window Channel Screw (Qty: 3) CAUTION: Refer to Fastener Caution . Procedure Remove the rear side door water deflector. Lower the window to the full down position. Tighten 2.5 N.m (22 lb in)
2	Rear Side Door Stationary Window Channel NOTE: Inspect the door window for proper operation before installing the door trim.

Callout

Component Name

Preliminary Procedure
Remove the rear side door window. Refer to Rear Side Door Window Replacement .

Rear Side Door Stationary Window Channel Screw (Qty: 3)

CAUTION:

Procedure

Tighten
2.5 N.m (22 lb in)

Rear Side Door Stationary Window Channel

NOTE:

Inspect the door window for proper operation before installing the door trim.
