Parking Assist Alarm Sensor Ring Replacement
| Callout | Component Name |
|---|---|
| Preliminary Procedure Remove either the front or rear parking assist alarm sensor. Refer to Front Parking Assist Alarm Sensor Replacement (Chevrolet Outer) Front Parking Assist Alarm Sensor Replacement (GMC Outer) Front Parking Assist Alarm Sensor Replacement (Center) , Rear Parking Assist Alarm Sensor Replacement (Outer) Rear Parking Assist Alarm Sensor Replacement (Center) . |
|

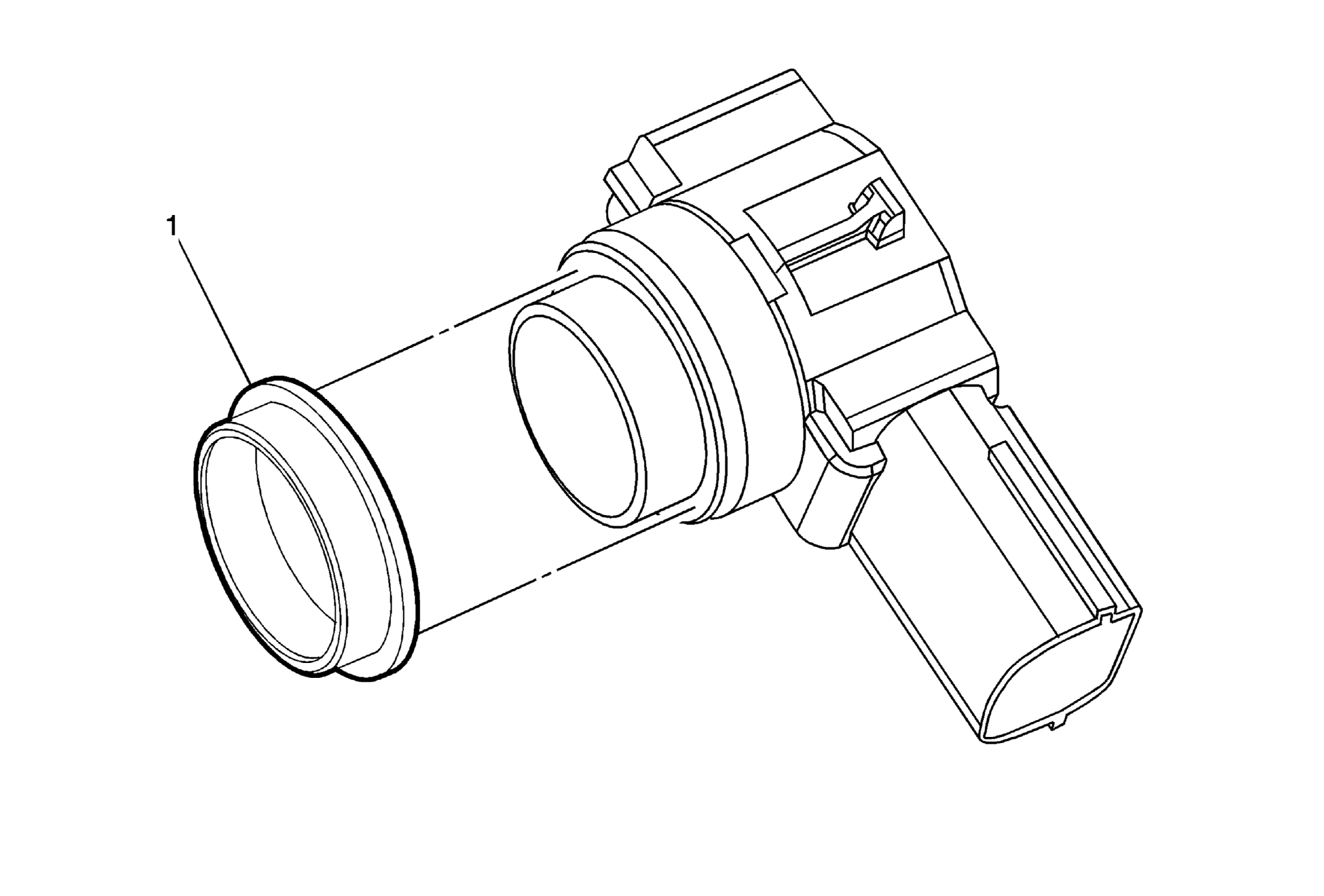

| 1 | Front Parking Assist Alarm Sensor Ring Procedure Pull the parking assist alarm sensor ring from the parking assist alarm sensor |
