Park Assist - Front Sensors (UD5)

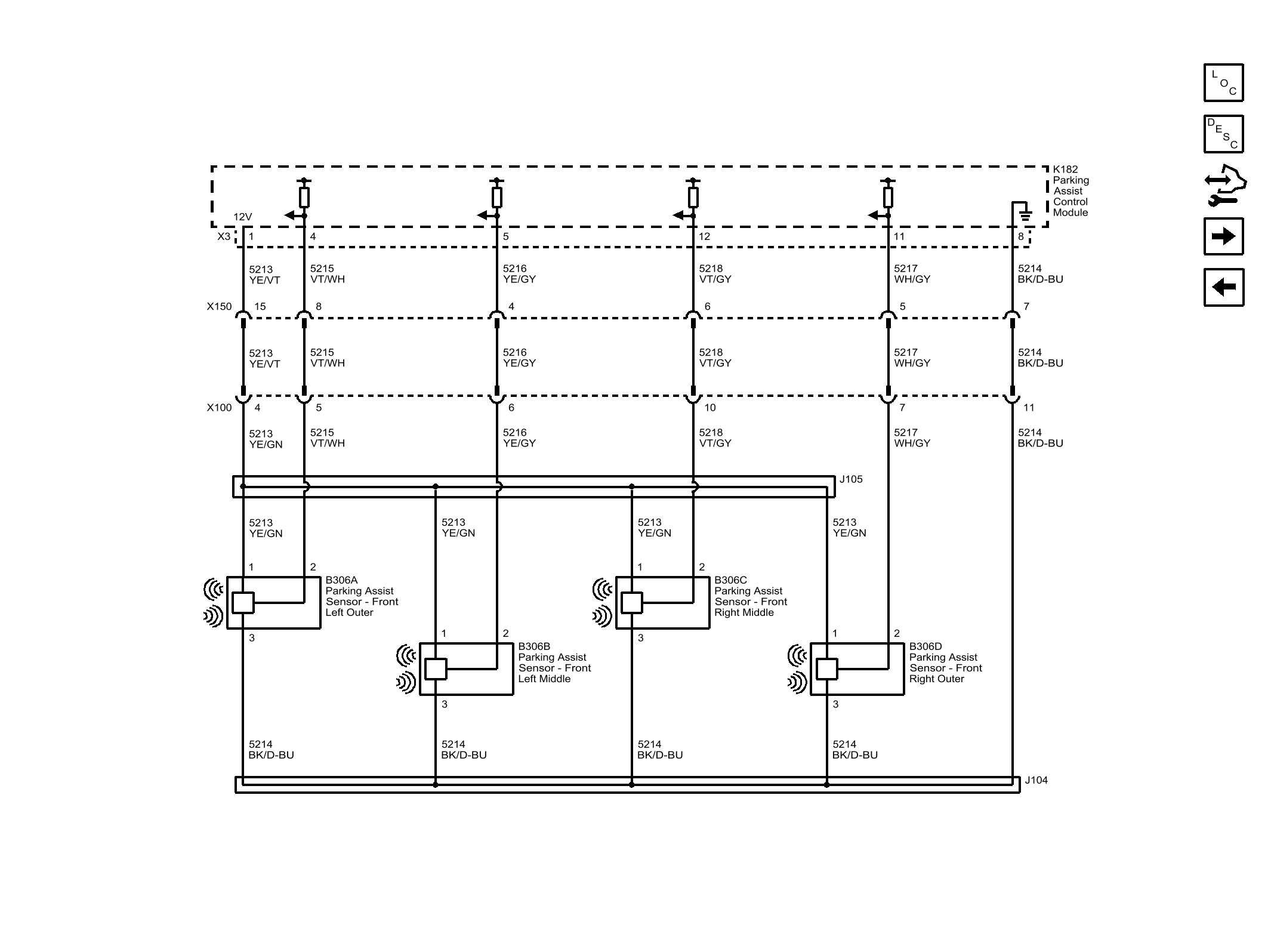

Fig 1: Park Assist - Front Sensors (UD5)
Courtesy of GENERAL MOTORS COMPANY
Courtesy of GENERAL MOTORS COMPANY
