Radio Control Assembly Replacement

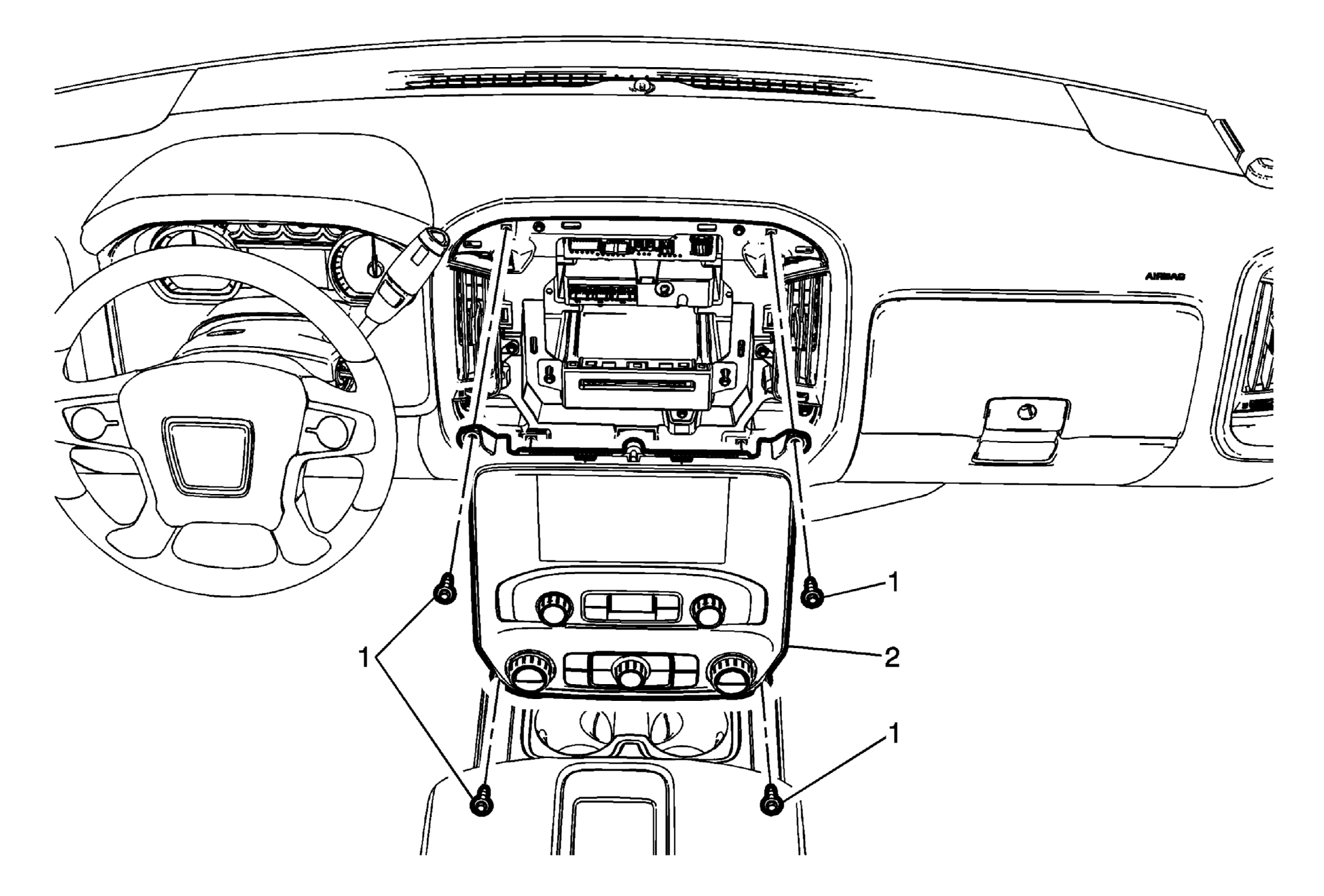

Fig 1: Radio Control Assembly

Courtesy of GENERAL MOTORS COMPANY

Callout	Component Name
Preliminary Procedure Remove the instrument panel accessory bezel. Refer to Instrument Panel Accessory Bezel Replacement .
1	Radio Control Fastener (Qty: 4) CAUTION: Refer to Fastener Caution .
2	Radio Control Assembly Procedure Disconnect the electrical connections. When replacing the radio control assembly, transfer all necessary components.

Callout

Component Name

Preliminary Procedure
Remove the instrument panel accessory bezel. Refer to Instrument Panel Accessory Bezel Replacement .

Radio Control Fastener (Qty: 4)

CAUTION:

Radio Control Assembly

Procedure
