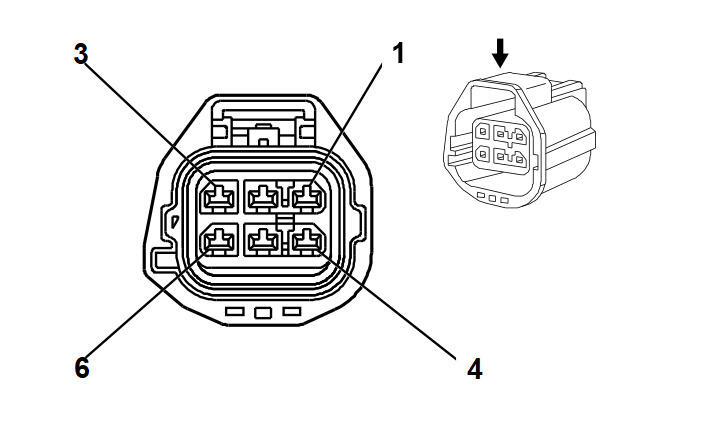

K4 Assist Step Control Module X1
|
|
Connector Part Information
- Harness Type: Chassis
- OEM Connector: 15342659
- Service Connector: 88988393
- Description: 6-Way F 2.8 Series, Sealed (D-GY)
|
Terminal Part Information
| Terminal Type ID |
Terminated Lead |
Diagnostic Test Probe |
Terminal Removal Tool |
Service Terminal |
Tray Name |
Core Crimp |
Insulation Crimp |
| I |
Not Required |
J-35616-35 (VT) |
No Tool Required |
Not Required |
Not Required |
Not Required |
Not Required |
| Pin |
Size |
Color |
Circuit |
Function |
Terminal Type ID |
Option |
| 1 |
2 |
L-GN |
7469 |
Articulating Running Boards Motor Right Control Retract |
I |
- |
| 2 |
2.5 |
BK |
2150 |
Ground |
I |
- |
| 3 |
2 |
WH/BN |
7471 |
Articulating Running Boards Motor Left Control Extend |
I |
- |
| 4 |
2 |
D-BU |
7470 |
Articulating Running Boards Motor Right Control Extend |
I |
- |
| 5 |
2.5 |
RD/YE |
1142 |
Battery Positive Voltage |
I |
- |
| 6 |
2 |
GY |
7472 |
Articulating Running Boards Motor Left Control Retract |
I |
- |
