K111 Fuel Pump Driver Control Module (L5P)

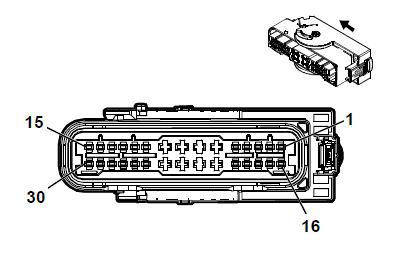

Connector Part Information

Terminal Part Information

Terminal Type ID	Terminated Lead	Diagnostic Test Probe	Terminal Removal Tool	Service Terminal	Tray Name	Core Crimp	Insulation Crimp
I	19300440	J-35616-35 (VT)	J-38125-557	Not Available	Not Available	Not Available	Not Available
II	19329958	J-35616-2A (GY)	J-38125-560	Not Available	Not Available	Not Available	Not Available

Pin	Size	Color	Circuit	Function	Terminal Type ID	Option
1 - 3	-	-	-	Not Occupied	-	-
4	0.5	BN/VT	455	Fuel Filter Temperature Signal	II	-
5	0.5	BU/YE	6861	Water In Fuel Sensor Signal	II	-
6	-	-	-	Not Occupied	-	-
7	2.5	RD/VT	1940	Battery Positive Voltage	I	-
8	2.5	GY	120	Fuel Pump Control	I	-
9	2.5	YE/GY	4137	Fuel Pump Supply Voltage Phase 2	I	-
10 - 12	-	-	-	Not Occupied	-	-
13	0.5	BU/VT	1589	Primary Fuel Level Sensor Signal	II	-
14	0.5	BU/WH	1937	Secondary Fuel Level Sensor Signal	II	-
15	0.5	WH	4499	High Speed GMLAN Serial Data (-) 7	II	-
16	0.5	VT/BU	3674	NOx Sensor 1 Control	II	-
17	0.75	VT/GN	439	Run/Crank Ignition 1 Voltage	II	-
18	0.5	GN/GY	465	Fuel Pump Primary Relay Control	II	-
19	0.5	BK/VT	412	Fuel Filter Temperature Sensor Low Reference	II	-
20 - 21	-	-	-	Not Occupied	-	-
22	2.5	BK	2150	Ground	I	-
23	0.5	BK	7444	Fuel System Control Module Shield Ground	I	-
24	2.5	WH/BN	4138	Fuel Pump Supply Voltage Phase 3	I	-
25	0.5	BK/BU	6863	Water In Fuel Sensor Low Reference	II	-
26 - 27	-	-	-	Not Occupied	-	-
28	0.5	BK/GN	6281	Fuel Level Sensor Low Reference	II	-
29	0.5	BK/GN	6281	Fuel Level Sensor Low Reference	II	-
30	0.5	BU/BN	4498	High Speed GMLAN Serial Data (+) 7	II	-
