K34 Glow Plug Control Module

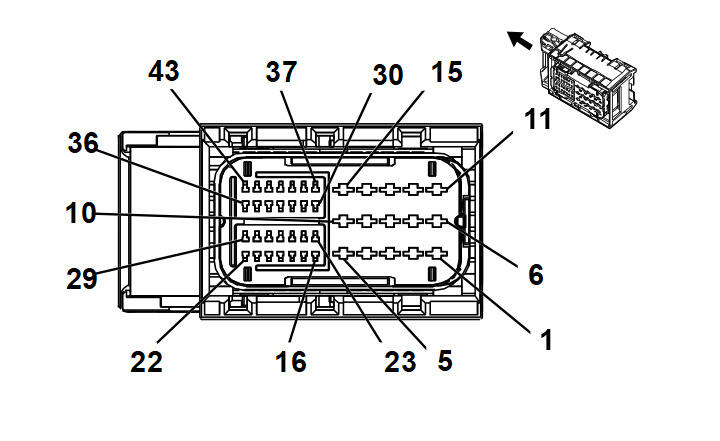

Connector Part Information

Terminal Part Information

Terminal Type ID	Terminated Lead	Diagnostic Test Probe	Terminal Removal Tool	Service Terminal	Tray Name	Core Crimp	Insulation Crimp
I	13576372	J-35616-4A (PU)	J-38125-556	Not Available	Not Available	Not Available	Not Available
II	13580008	J-35616-16 (LT GN)	J-38125-21	Not Available	Not Available	Not Available	Not Available

Pin	Size	Color	Circuit	Function	Terminal Type ID	Option
1	-	-	-	Not Occupied	-	-
2	2	GY/YE	1584	Glow Plug Control 4	I	L5P
3	2	GY/GN	1583	Glow Plug Control 3	I	L5P
4	2	GY/BN	1582	Glow Plug Control 2	I	L5P
5	2	GY/BU	1581	Glow Plug Control 1	I	L5P
6 - 9	-	-	-	Not Occupied	-	-
10	2	BK	550	Ground	I	L5P
11	-	-	-	Not Occupied	-	-
12	2	GY/WH	1585	Glow Plug Control 5	I	L5P
13	2	GY/VT	1586	Glow Plug Control 6	I	L5P
14	2	WH/BK	1587	Glow Plug Control 7	I	L5P
15	2	WH/BU	1588	Glow Plug Control 8	I	L5P
16	0.5	BK	-	-	II	L5P
17	0.5	BK	-	-	II	L5P
18	0.5	WH	2501	High Speed GMLAN Serial Data (-) 1	II	L5P
19	0.5	WH	2501	High Speed GMLAN Serial Data (-) 1	II	L5P
20 - 22	-	-	-	Not Occupied	-	-
23	0.5	BK	-	-	II	L5P
24	0.5	BK	-	-	II	L5P
25	0.5	BU	2500	High Speed GMLAN Serial Data (+) 1	II	L5P
26	0.5	BU	2500	High Speed GMLAN Serial Data (+) 1	II	L5P
27 - 29	-	-	-	Not Occupied	-	-
30	0.5	BK	-	-	II	L5P
31	0.5	BK	-	-	II	L5P
32	-	-	-	Not Occupied	-	-
33	0.5	VT/BK	2139	Run/Crank Ignition 1 Voltage	II	L5P
34 - 36	-	-	-	Not Occupied	-	-
37	0.5	BK	-	-	II	L5P
38	0.5	BK	-	-	II	L5P
39	-	-	-	Not Occupied	-	-
40	0.5	VT/YE	443	Accessory Ignition Voltage	II	L5P
41 - 43	-	-	-	Not Occupied	-	-
