Glow Plug Control Module Replacement

WARNING: This page is about a different car, the 2017 GMC Sierra 3500 HD, 2017 GMC Sierra 2500 HD, 2017 Chevrolet Silverado 3500 HD, and 2017 Chevrolet Silverado 2500 HD. However, it is still accessible from the selected car via links, so may be relevant.

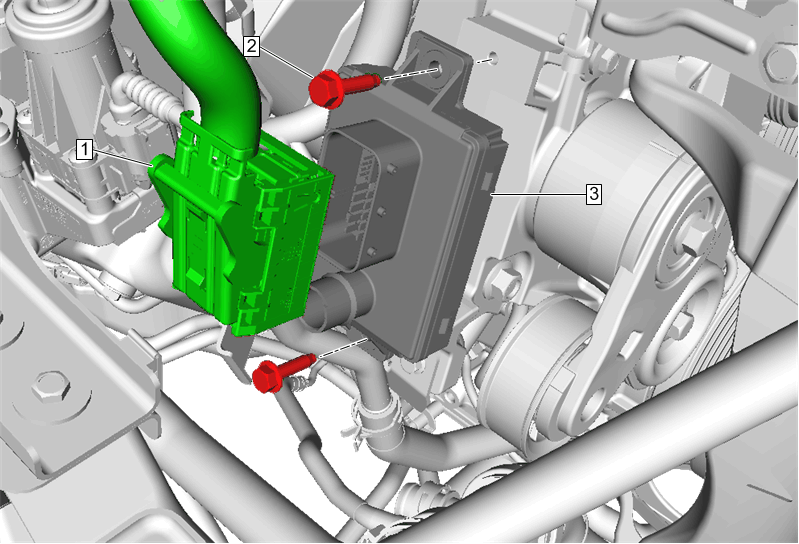

Fig 1: Glow Plug Control Module
GM4596090Courtesy of GENERAL MOTORS COMPANY
Callout Component Name
Preliminary Procedure
Air Cleaner Assembly Replacement
1 Glow Plug Control Module Bolt
CAUTION:

Refer to Fastener Caution .


Tighten
10 (89 lb in)
2 Glow Plug Module Connector
Procedure
Disconnect the glow plug module connector.
3 Glow Plug Control Module

Procedure

  1. If the scan tool DPF Soot Mass is less than 30 grams, enable the DPF. Diesel Particulate Filter (DPF) Regeneration Enable
  2. If the scan tool DPF Soot Mass is 30 grams or greater, refer to Diesel Particulate Filter (DPF) Service Regeneration .
  3. Perform the glow plug module programming and setup. Glow Plug Control Module Programming and Setup
