Transfer Case Control Module Replacement

WARNING: This page is about a different variant/trim than selected.

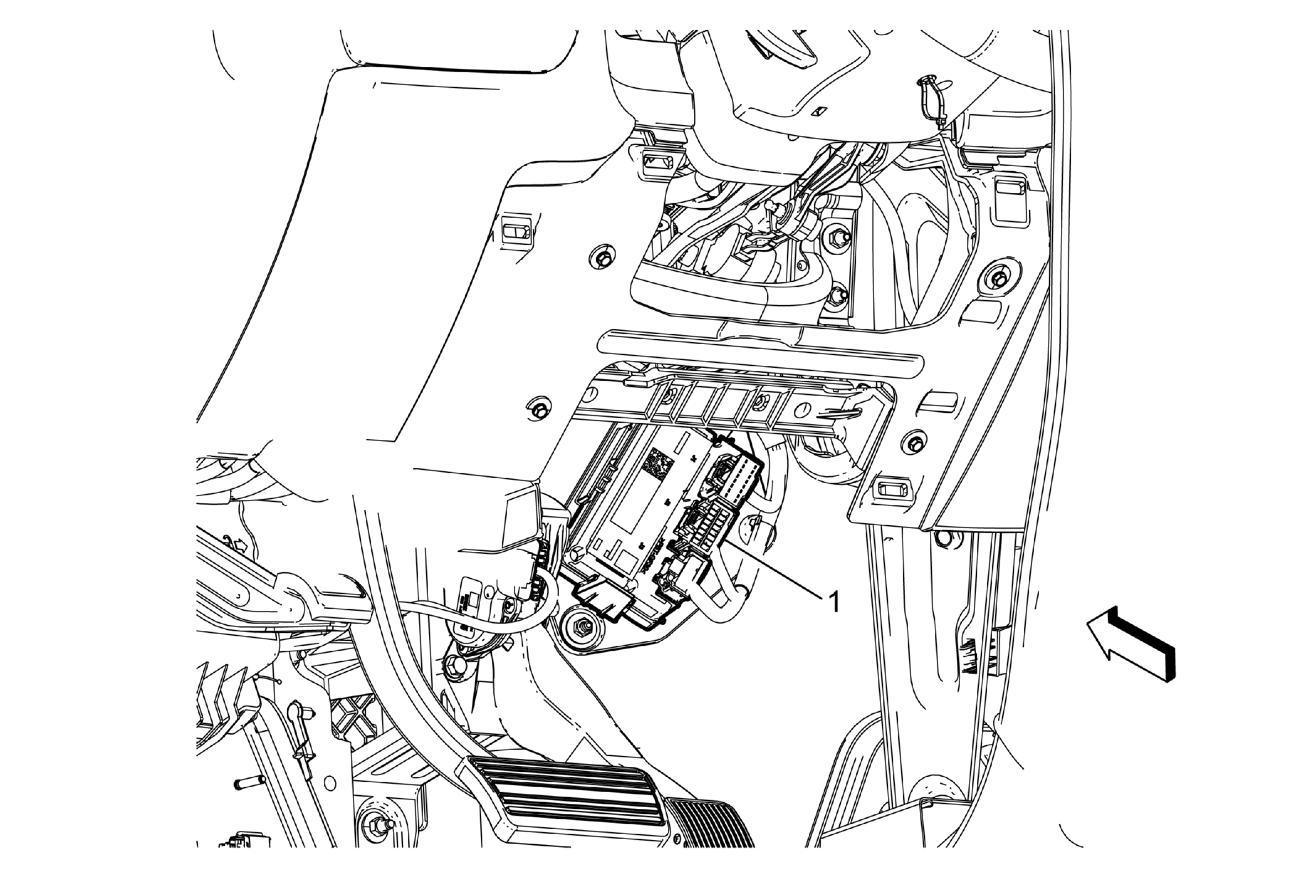

Fig 1: Transfer Case Shift Control Module

Courtesy of GENERAL MOTORS COMPANY

Callout	Component Name
Preliminary Procedure Remove the knee bolster. Refer to Instrument Panel Knee Bolster Replacement .
1	Transfer Case Shift Control Module Procedure Disconnect the electrical connector. Remove the module from the module bracket by releasing the retaining tabs. If installing a new module, perform the transfer case shift control module programing and setup. Refer to Control Module References .

Callout

Component Name

Preliminary Procedure
Remove the knee bolster. Refer to Instrument Panel Knee Bolster Replacement .

Transfer Case Shift Control Module

Procedure

Disconnect the electrical connector.
Remove the module from the module bracket by releasing the retaining tabs.
If installing a new module, perform the transfer case shift control module programing and setup. Refer to Control Module References .
