Chassis Control Module Replacement (With Active Air Shutter)

WARNING: This page is about a different variant/trim than selected.

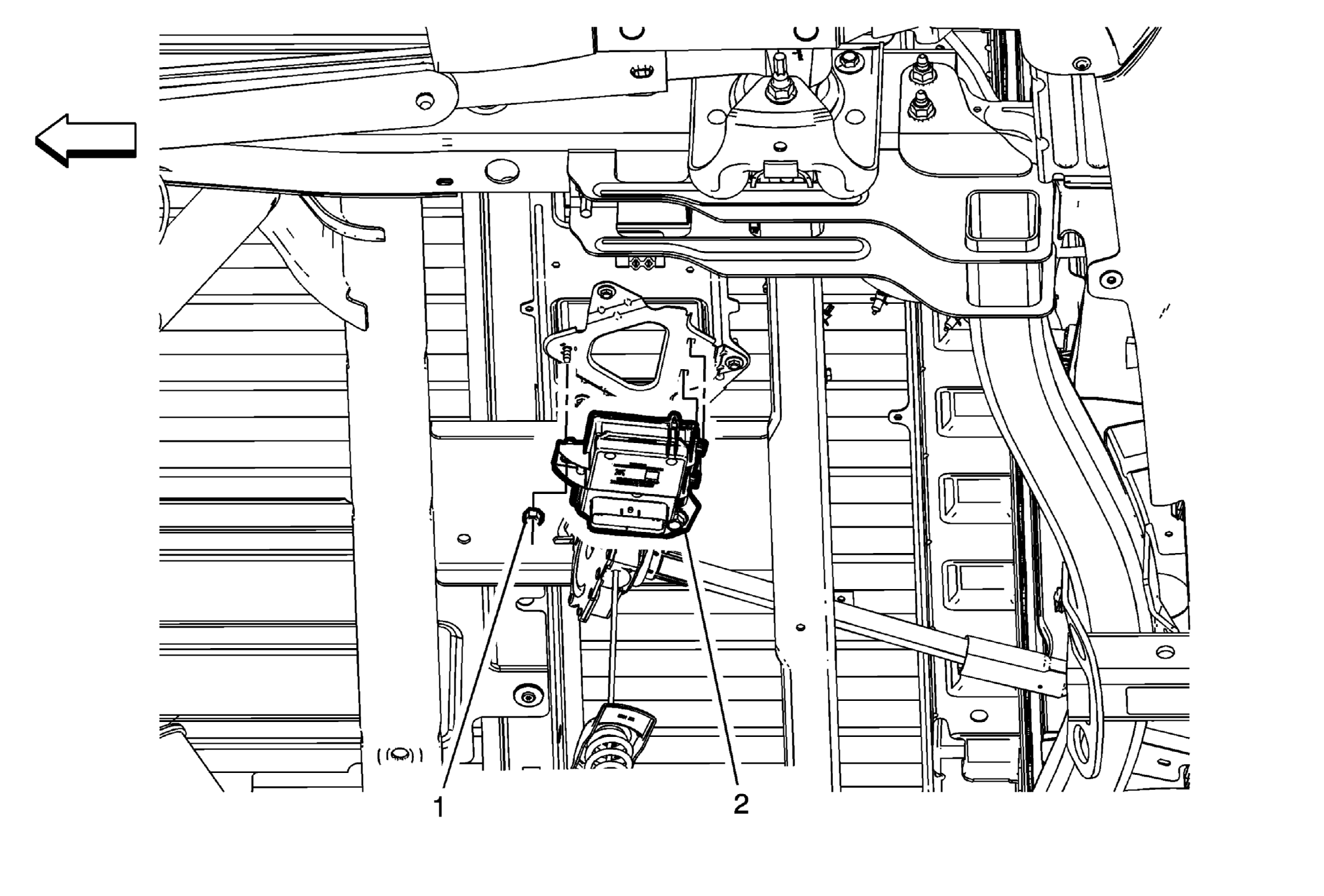

Fig 1: Chassis Control Module (With Active Air Shutter)
GM3445913Courtesy of GENERAL MOTORS COMPANY
Callout Component Name
Preliminary Procedure
Remove the spare tire. Refer to Spare Wheel Hoist Replacement .
1 Chassis Control Module Fastener
CAUTION:

Refer to Fastener Caution .


Tighten
9 N.m (80 lb in)
2 Chassis Control Module

Procedure

  1. Disconnect the electrical connector.
  2. If replacing, reprogram the module. Refer to Control Module References .
