Fuel Pump Power Control Module Replacement
WARNING: This page is about a different variant/trim than selected.

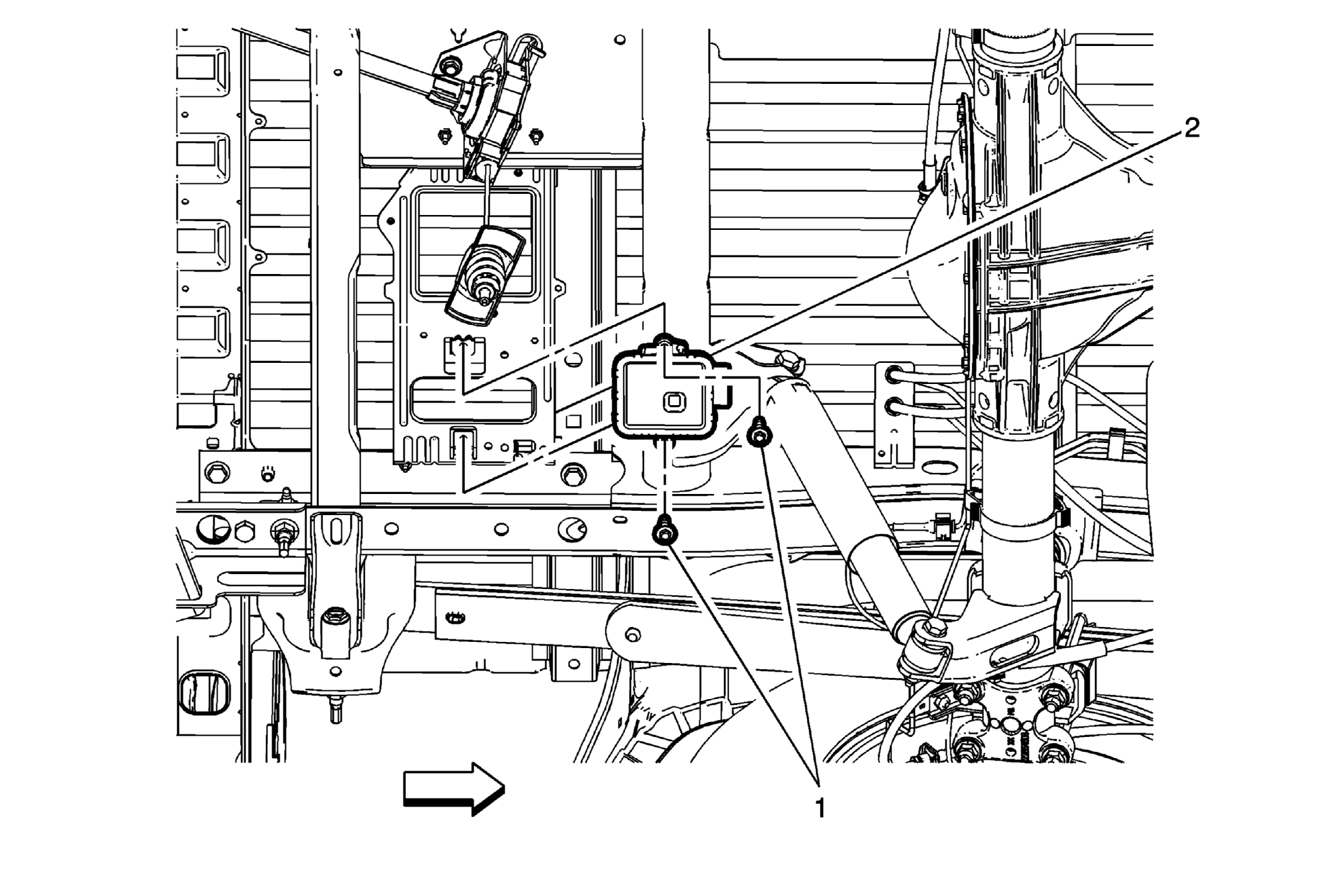

| Callout | Component Name |
|---|---|
| Preliminary Procedure Remove the spare tire. Refer to Spare Wheel Hoist Replacement . |
|
| 1 | Fuel Pump Power Control Module Fastener (Qty: 2)
CAUTION:
Refer to Fastener Caution . Tighten 9 N.m (80 lb in) |
| 2 | Fuel Pump Power Control Module Procedure Disconnect the electrical connector. |
