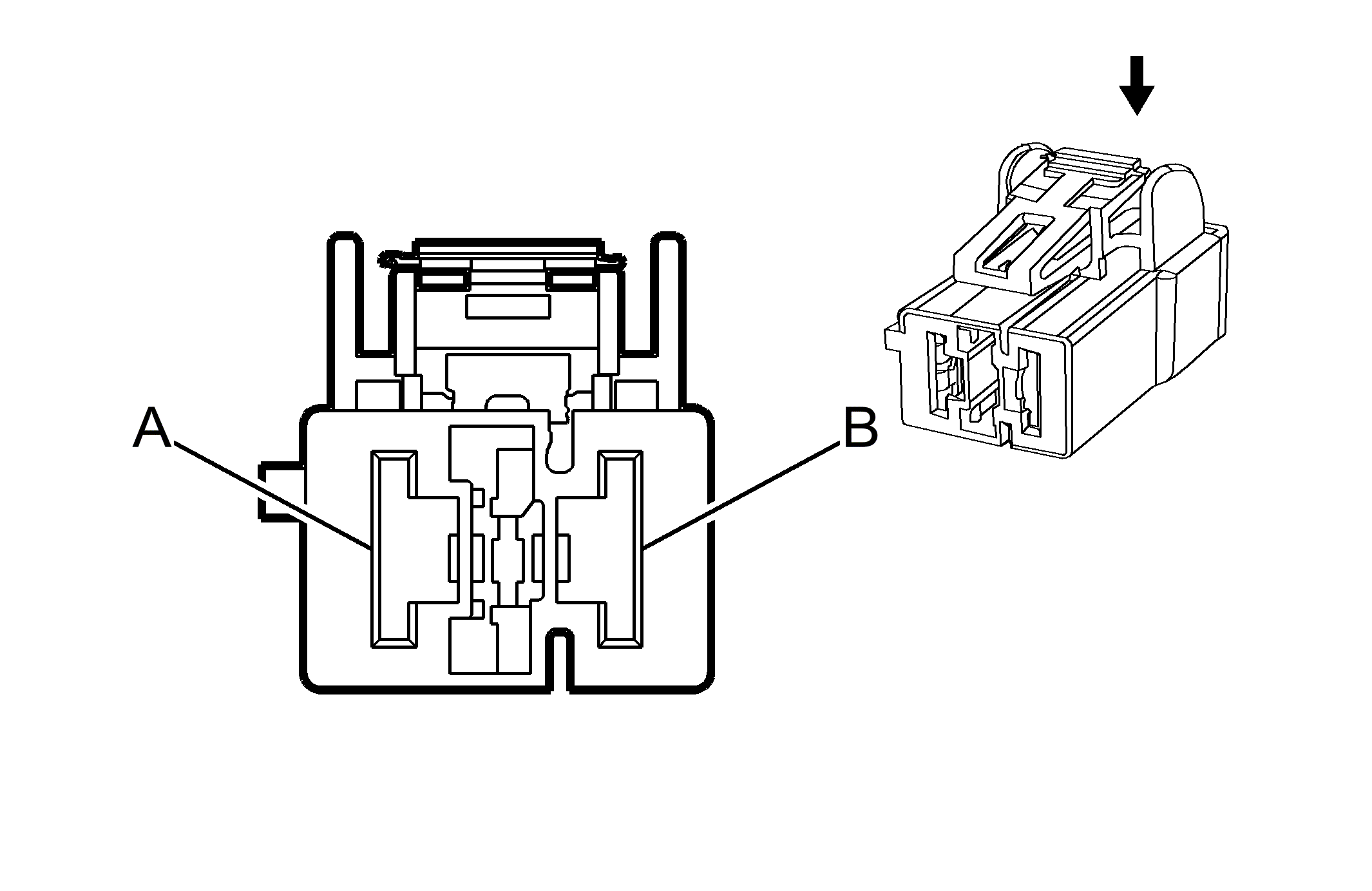

K43 Power Steering Control Module X2
|
|
Connector Part Information
- Harness Type: Power Steering Jumper
- OEM Connector: 45.4031
- Service Connector: Service by Harness - See Part Catalog
- Description: 2-Way F 8.0 Series (BU)
|
Terminal Part Information
| Terminal Type ID |
Terminated Lead |
Diagnostic Test Probe |
Terminal Removal Tool |
Service Terminal |
Tray Name |
Core Crimp |
Insulation Crimp |
| I |
Not Required |
J-35616-44 (YE) |
No Tool Required |
Not Required |
Not Required |
Not Required |
Not Required |
| Pin |
Size |
Color |
Circuit |
Function |
Terminal Type ID |
Option |
| A |
8 |
RD/L-GN |
40 |
Battery Positive Voltage |
I |
- |
| B |
8 |
BK |
1950 |
Ground |
I |
- |
