Right Front of Engine Components - 1.8L (LWE)

Right Front of Engine Components - 1.8L (LWE)

Items
1. Q29 Secondary Air Injection Solenoid Valve (LWE) Q29 Secondary Air Injection Solenoid Valve
2. G21 Secondary Air Injection Pump (LWE) G21 Secondary Air Injection Pump

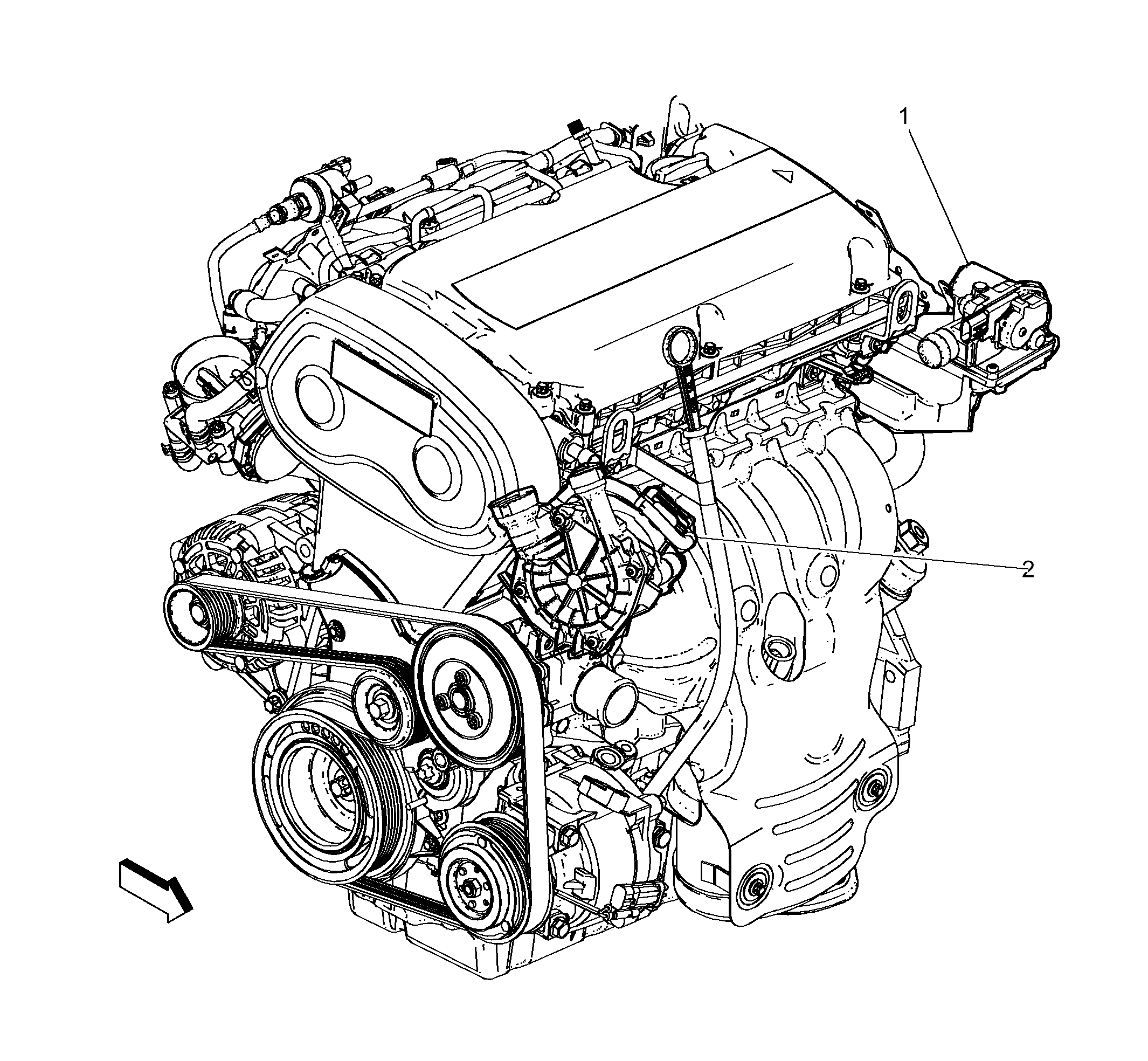

Fig 1: Right Front of Engine Components - 1.8L (LWE)
GM2968587Courtesy of GENERAL MOTORS COMPANY
