Forward Collision and Lane Departure Controls (UEU/UFL)

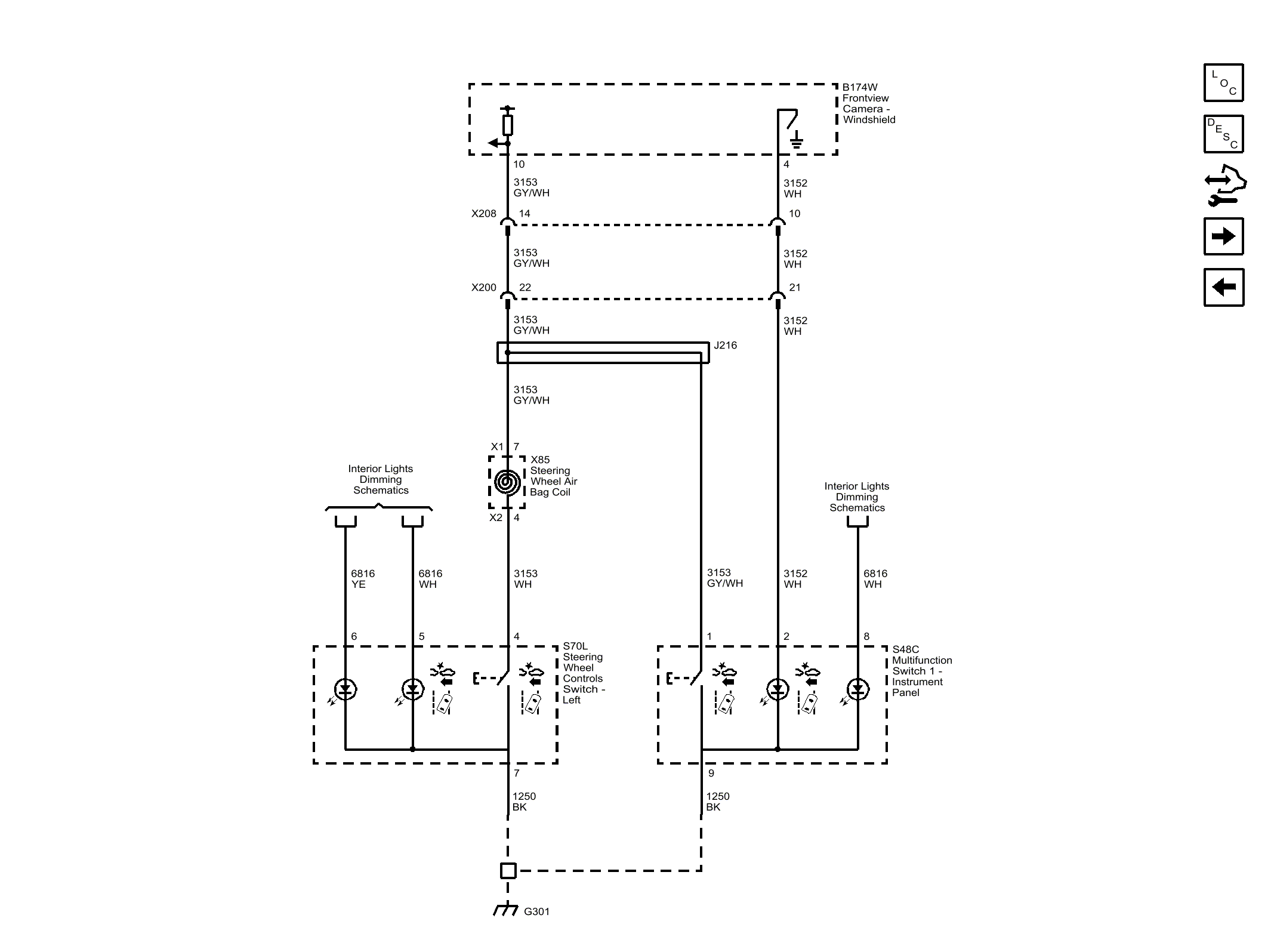

Fig 1: Forward Collision and Lane Departure Controls Wiring Schematic (UEU/UFL)
Courtesy of GENERAL MOTORS COMPANY
Courtesy of GENERAL MOTORS COMPANY
