Chevrolet
>>
2017
>>
Spark LS, Automatic CVT Trans
>>
Repair and Diagnosis
>>
Accessories & Equipment
>>
Drivers Assistance Systems - ADAS
>>
Object Detection System
>>
Schematic Wiring Diagrams
>>
Object Detection Wiring Schematics
>>
Power, Ground, Serial Data, Rear and Side Object Sensors, Controls and Display (UD7/UDQ)
April 5, 2026:
LEMON Manuals is launched!
Read the announcement.
Power, Ground, Serial Data, Rear and Side Object Sensors, Controls and Display (UD7/UDQ)

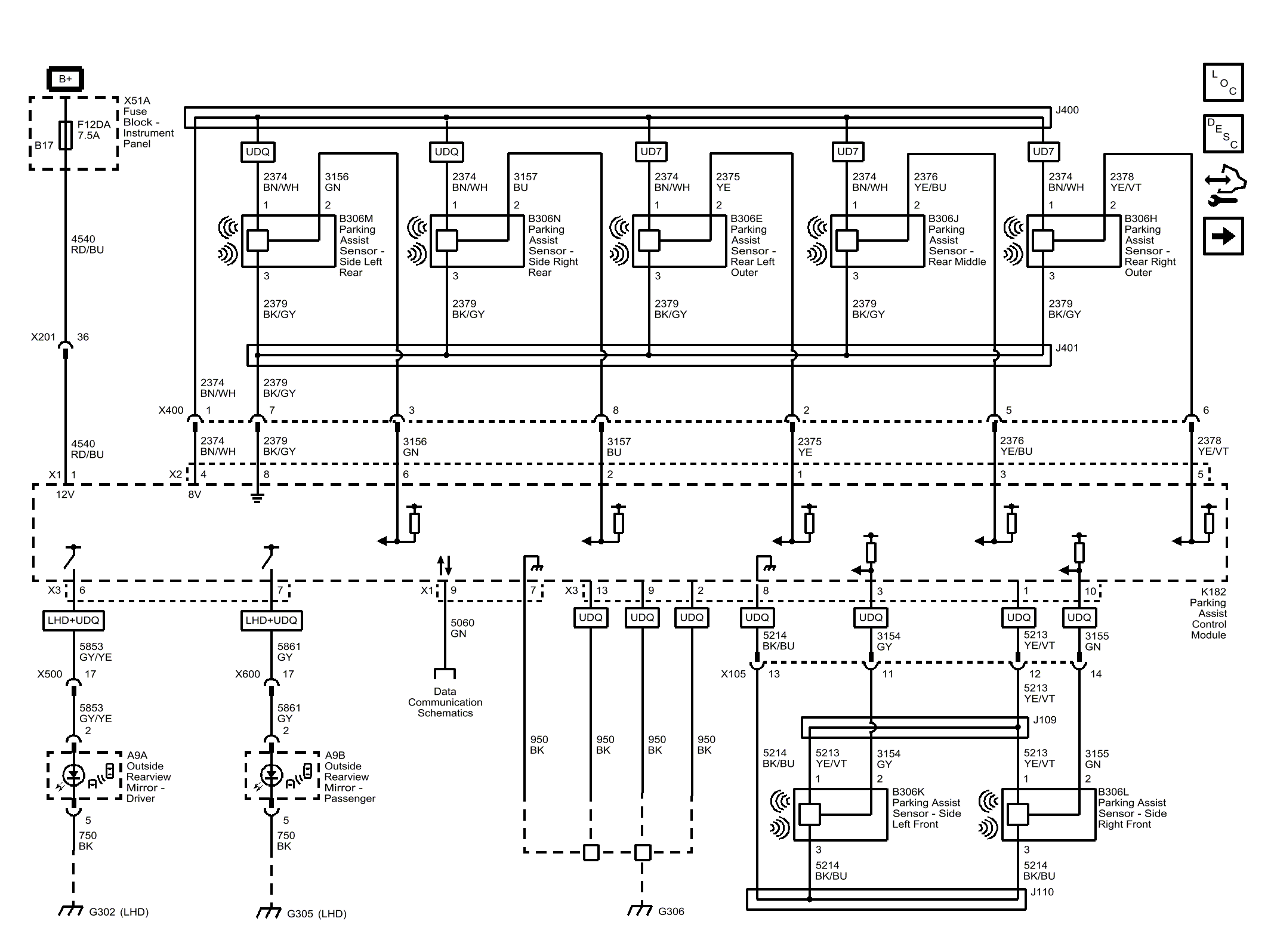

Fig 1: Power, Ground, Serial Data, Rear and Side Object Sensors, Controls and Display (UD7/UDQ)
