K33 HVAC Control Module

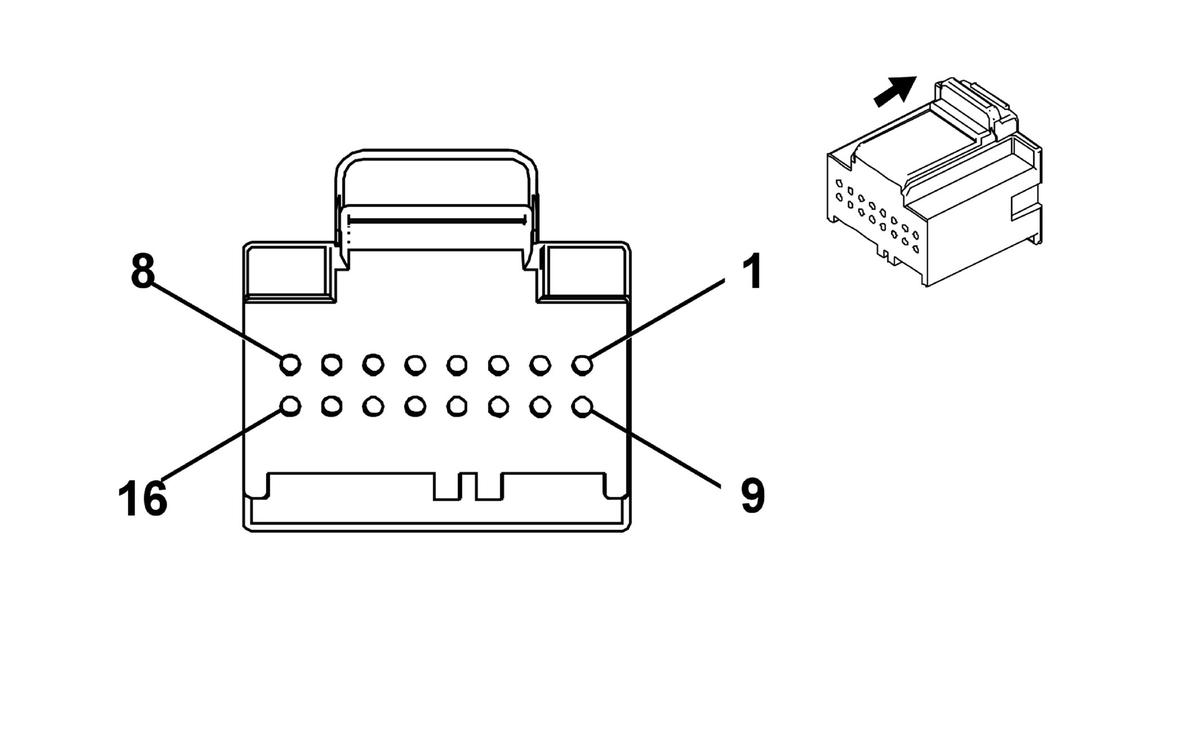

Connector Part Information
|
Terminal Part Information
| Terminal Type ID | Terminated Lead | Diagnostic Test Probe | Terminal Removal Tool | Service Terminal | Tray | Core Crimp | Insulation Crimp |
|---|---|---|---|---|---|---|---|
| I | 13575571 | J-35616-64B (LT BU) | J-38125-553 | Not Available | Not Available | Not Available | Not Available |
| II | 13582288 | J-35616-64B (LT BU) | J-38125-553 | Not Available | Not Available | Not Available | Not Available |
| Pin | Size | Color | Circuit | Function | Terminal Type ID | Option |
|---|---|---|---|---|---|---|
| 1 | 0.5 | RD/GN | 3140 | Battery Positive Voltage | I | (MBM+(C41/C60)-KL9)/(C49+(C41/C60)+(MAH/MBC/KL9) |
| 2 | 0.35 0.35 |
VT/BN BU/WH |
741 292 |
Run Ignition 3 Voltage Rear Defog Switch Signal |
II II |
(MBM+(C41/C60)-KL9)/(C49+(C41/C60)+(MAH/MBC/KL9)) (C41/C60)+C49-MBM-MAH-MBC-KL9 |
| 3 | 0.35 0.35 0.35 |
BN/BU GN/WH GN/WH |
683 4115 4115 |
Rear Defog Indicator Supply Voltage Linear Interconnect Network Bus 15 Linear Interconnect Network Bus 15 |
II II II |
(C41/C60)+C49-MBM-MAH-MBC-KL9 ((C49+(C41/C60)+(MAH/MBC/KL9))/(C60+MBM) (C49+(C41/C60)+(MAH/MBC/KL9))/(C60+MBM) |
| 4 | 0.35 | BN/YE | 762 | A/C Request Signal | II | C60-MBM-MAH-MBC-KL9 |
| 5 | 0.35 0.35 |
WH/BN YE |
2212 6817 |
Auxiliary A/C Request Indicator Signal LED Backlight Dimming Control |
II II |
C60-MBM-MAH-MBC-KL9 (MBM+(C41/C60)-KL9)/(C49+(C41/C60)+(MAH/MBC/KL9)) |
| 6 | 0.35 | YE | 6817 | LED Backlight Dimming Control | II | (C41/C60)-MBM-MAH-MBC-KL9 |
| 7 | 0.35 | VT | 272 | Defrost Control Signal | II | C60-MBM-MAH-MBC-KL9 |
| 8 | 0.5 | BK | 1050 | Ground | I | C41/C60 |
| 9 | 0.35 | GY/RD | 598 | 5 Volt Reference | II | (C49+(C41/C60)+(MAH/MBC/KL9))/(C60+MBM) |
| 10 | 0.35 | VT/GN | 1838 | Recirculation Door Position Signal | II | (C49+(C41/C60)+(MAH/MBC/KL9))/(C60+MBM) |
| 11 | 0.35 | BK/YE | 1791 | Air Temperature Door Control Low Reference | II | (C49+(C41/C60)+(MAH/MBC/KL9))/(C60+MBM) |
| 12 | 0.35 | GN | 1614 | Recirculation Door Control | II | ((C49+(C41/C60)+(MAH/MBC/KL9))/(C60+MBM)/(C41+MBM-KL9) |
| 13 | 0.35 | YE/BK | 2274 | Recirculation Door Control | II | ((C49+(C41/C60)+(MAH/MBC/KL9))/(C60+MBM)/(C41+MBM-KL9) |
| 14 - 16 | - | - | - | Not Occupied | - | - |
