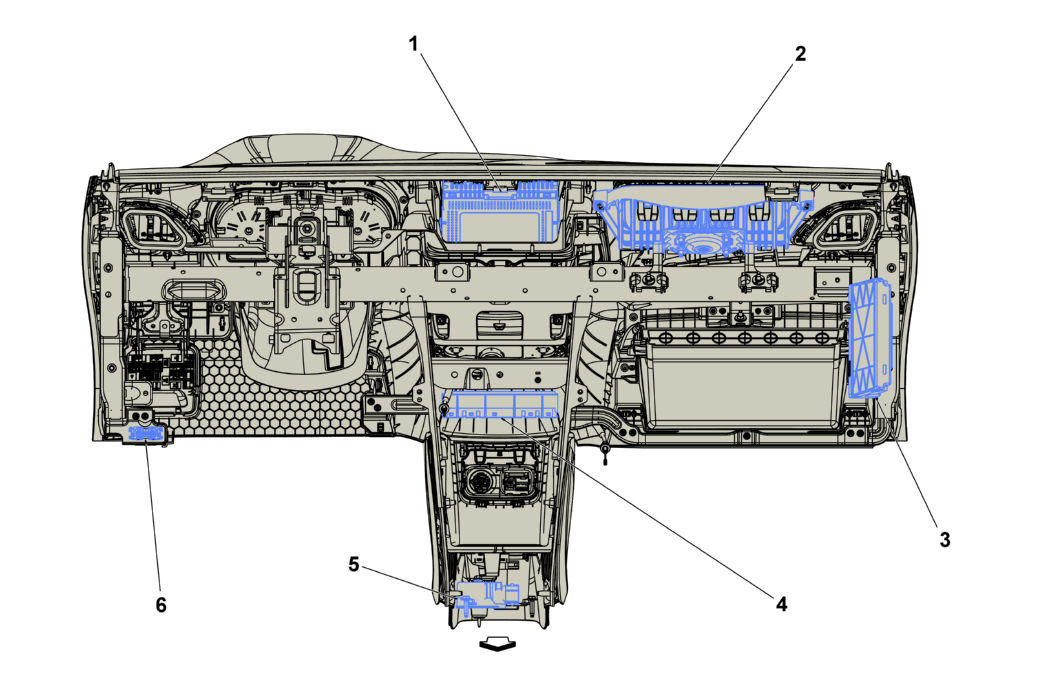

Behind the Instrument Panel Components (RHD)
Behind the Instrument Panel Components (RHD)
| Items |
|---|
| 1. K33 HVAC Control Module (C41, C60 or C68) K33 HVAC Control Module X1 (C41/C60)K33 HVAC Control Module X1 (C68)K33 HVAC Control Module X2 (C68) |
| 2. K36 Inflatable Restraint Sensing and Diagnostic Module (LHD) K36 Inflatable Restraint Sensing and Diagnostic Module X1K36 Inflatable Restraint Sensing and Diagnostic Module X2 |
| 3. X84 Data Link Connector X84 Data Link Connector |
| 4. K9 Body Control Module K9 Body Control Module X1K9 Body Control Module X2K9 Body Control Module X3K9 Body Control Module X4K9 Body Control Module X5K9 Body Control Module X6K9 Body Control Module X7 |
| 5. F101 Passenger Instrument Panel Air Bag (AK5 or AJ7) F101 Passenger Instrument Panel Air Bag X1 (LHD+AK5/AYC)F101 Passenger Instrument Panel Air Bag X1 (RHD+AK5/AYC)F101 Passenger Instrument Panel Air Bag X1 (AYF)F101 Passenger Instrument Panel Air Bag X2 (AYF) |
| 6. A11 Radio (IOB, IP0 or IP1) A11 Radio X1 (IOB)A11 Radio X1 (IP0+IP1)A11 Radio X2A11 Radio X3 (IOB)A11 Radio X3A11 Radio X8 (IO3)A11 Radio X7 |
