K89 Immobilizer Control Module UTJ

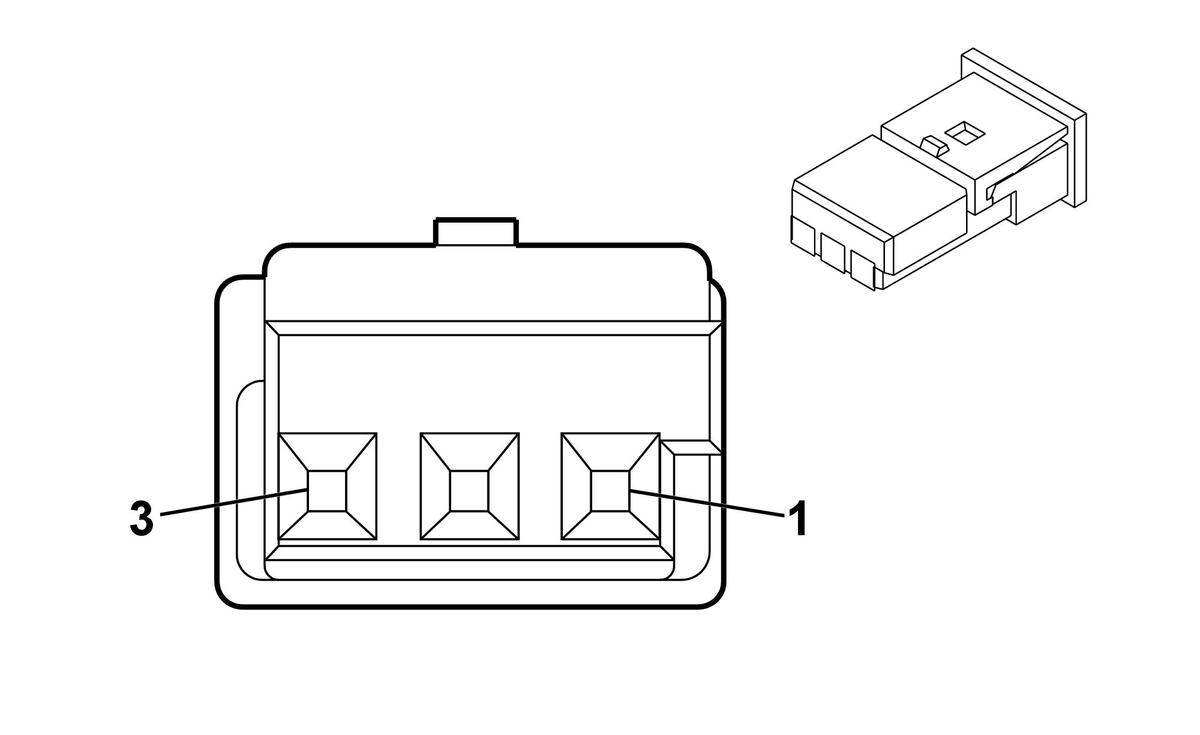

Connector Part Information

Terminal Part Information

Terminal Type ID	Terminated Lead	Diagnostic Test Probe	Terminal Removal Tool	Service Terminal	Tray	Core Crimp	Insulation Crimp
I	Not Required	J-35616-64B (LT BU)	No Tool Required	Not Required	Not Required	Not Required	Not Required

Pin	Size	Color	Circuit	Function	Terminal Type ID	Option
1	0.35 0.35 0.35	GN/GY GN/GY GN/GY	3277 3277 3277	Vehicle Anti-Theft System Immobilizer Return Vehicle Anti-Theft System Immobilizer Return Vehicle Anti-Theft System Immobilizer Return	I I I	-AVJ -MBB-AVJ-MBM MBB-AVJ-MBM
2	0.35 0.35 0.35	GN/VT GN/VT GN/VT	7533 7533 7533	Linear Interconnect Network Bus 11 Linear Interconnect Network Bus 11 Linear Interconnect Network Bus 11	I I I	-AVJ MBB-AVJ -MBB-AVJ
3	0.35 0.35 0.35	GY/BK GY/BK GY/BK	3276 3276 3276	Vehicle Anti-Theft System Immobilizer Supply Voltage Vehicle Anti-Theft System Immobilizer Supply Voltage Vehicle Anti-Theft System Immobilizer Supply Voltage	I I I	-AVJ MBB-AVJ-MBM -MBB-AVJ-MBM
